The 100T microphone features excellent noise cancellation for clear communication in noisy environments. Popping, hissing, and breathing sounds are minimized when used properly.
A microphone gain trimmer is accessible by removing the back cover. Output can be specified by adjusting the trimmer.
The 100T microphone is approved for aviation use under FAA TSO C58.

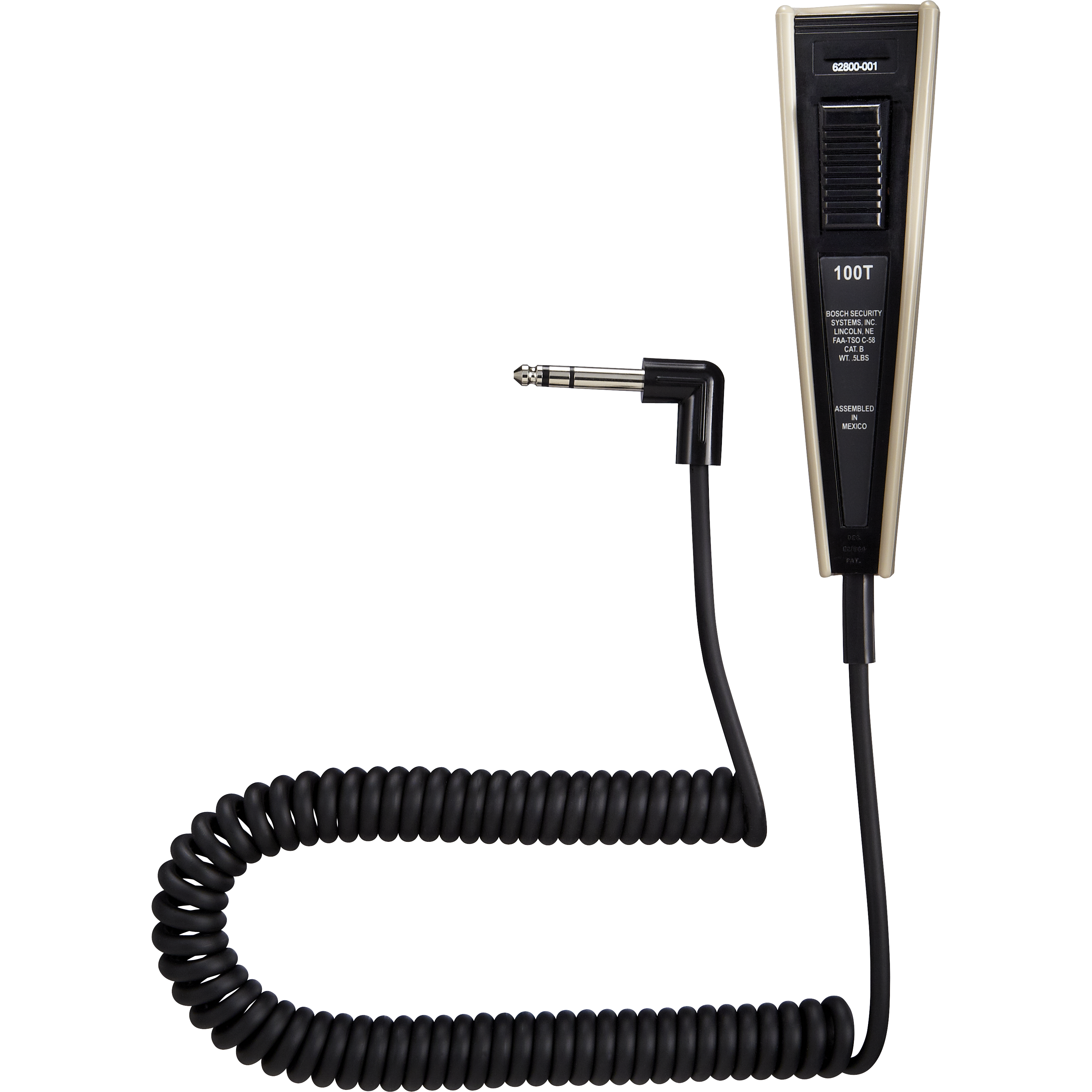

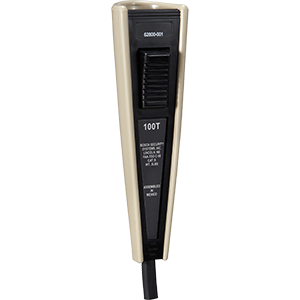

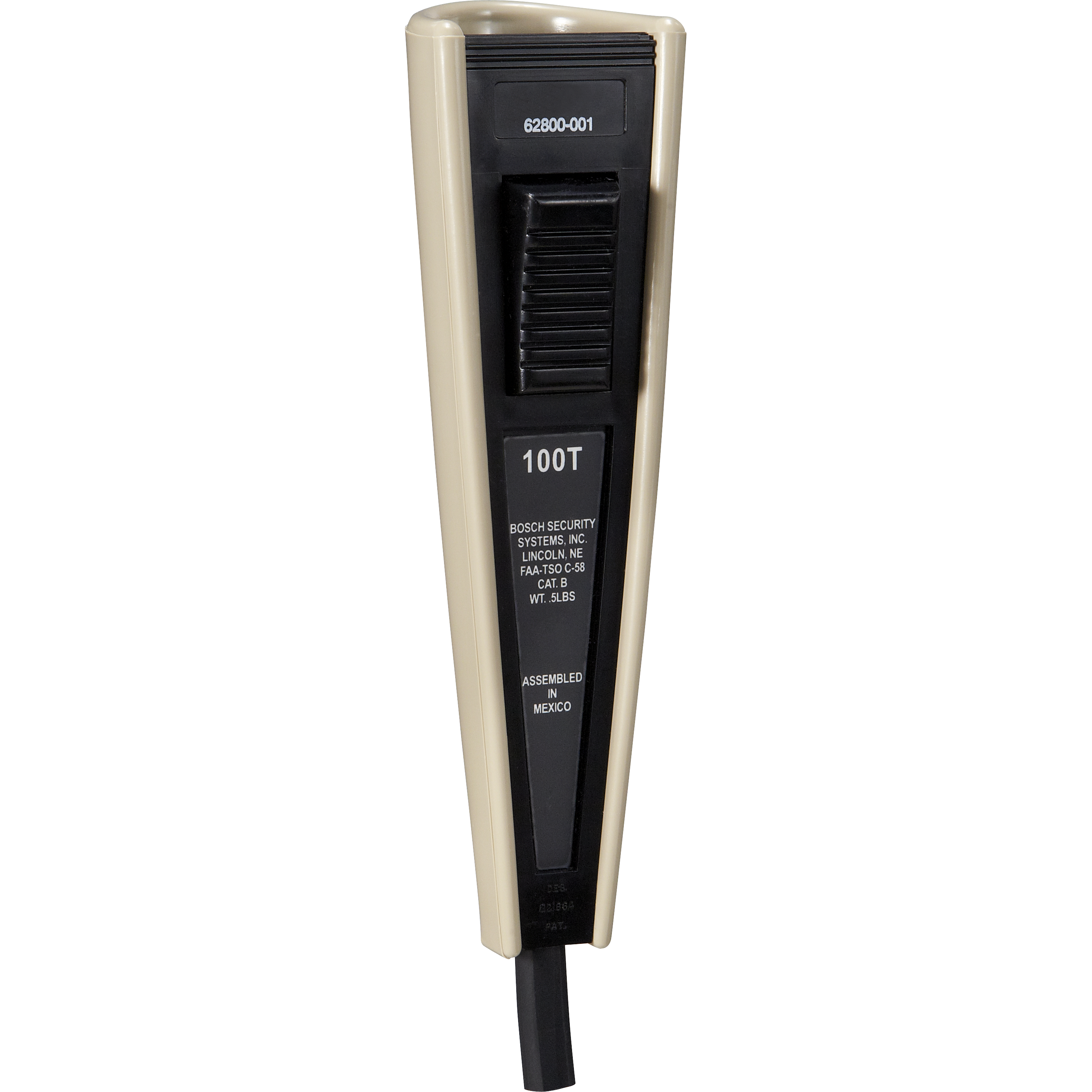

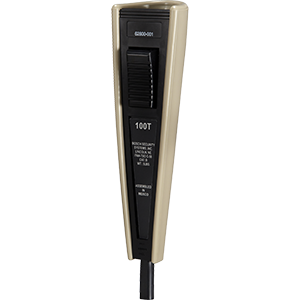

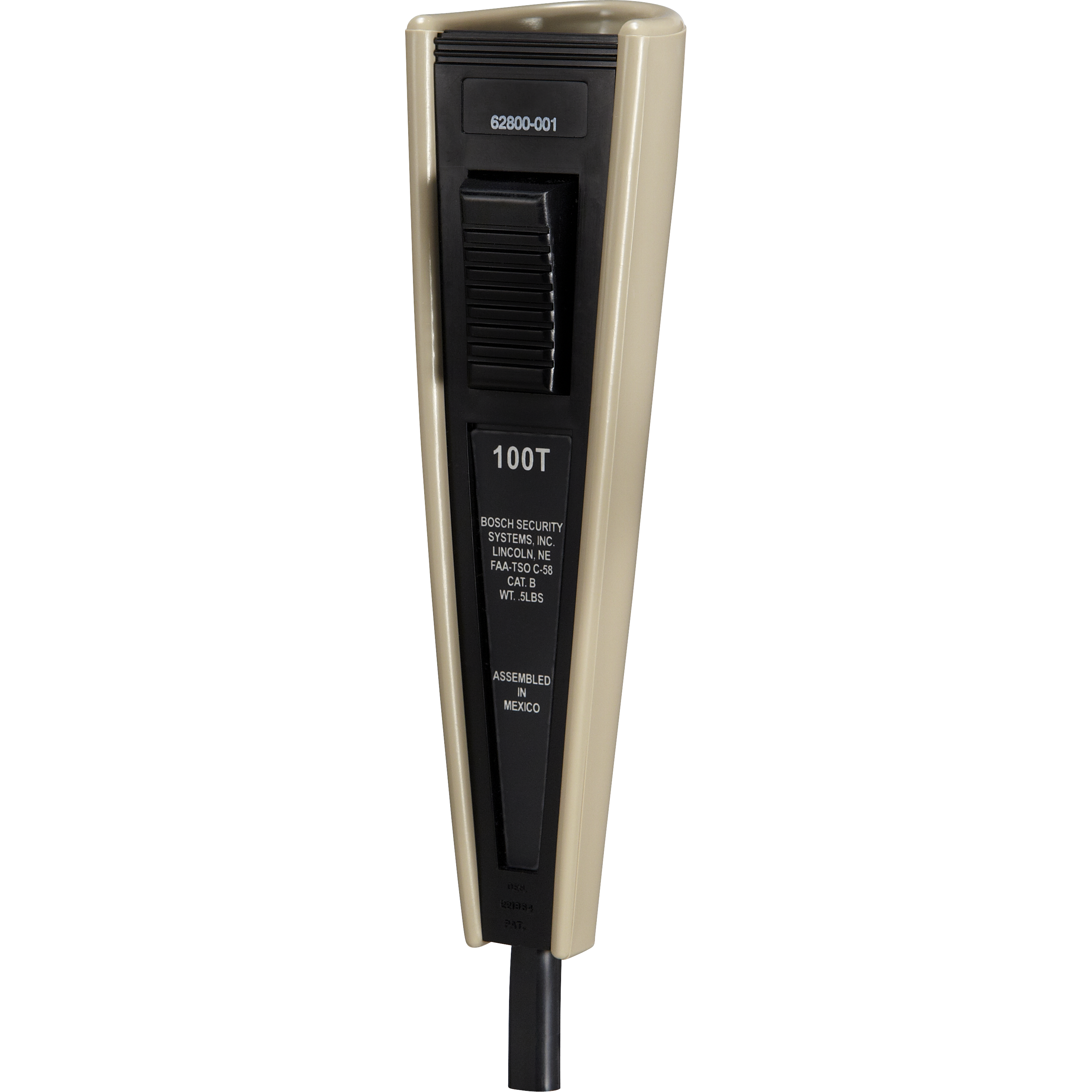

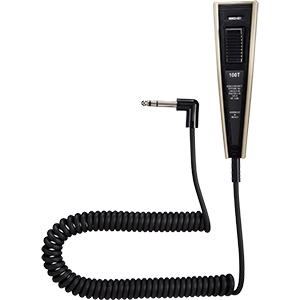

The model 100T is a noise-canceling aviation microphone. It consists of a dynamic microphone, amplifier, and push-to-talk switch in a rugged plastic housing. A hangar bracket and mounting hardware are supplied with the microphone. It is approved under the Federal Aviation Agency TSO C58.
Specifications
| Microphone Sensitivity | -48 dB (re: 1 V / μbar @ 1 kHz, 12 VDC) |
| Mounting | Hanger bracket |
| FAA TSO Approvals | C-58 |
| Weight | ~9 oz (255 g) |
| Microphone Type | Close Talking Differential, Dynamic Element |
| Frequency Response | 100 Hz – 5 kHz |
| Connector Type | Right angle PJ-068 equivalent |
| Warranty | 3 years |
| Retracted | ~11 in (279 mm) |
| Extended | ~5 ft. (1.5 m) |
