Airman series
For more than 50 years, Telex innovations have provided pilots with the quality communications they depend on for safe, enjoyable flying. Only Telex offers the unmatched combination of advanced microphone technology, superior noise protection, comfort, and reliability.
It is this long history in aviation, unique understanding of the market, and unmatched combination of capabilities which positions Telex as a supplier to every major airplane manufacturer.
Models
 |
 |
 |
 |
 | |
Airman 8+ |
Airman 8 |

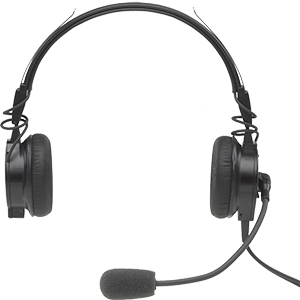

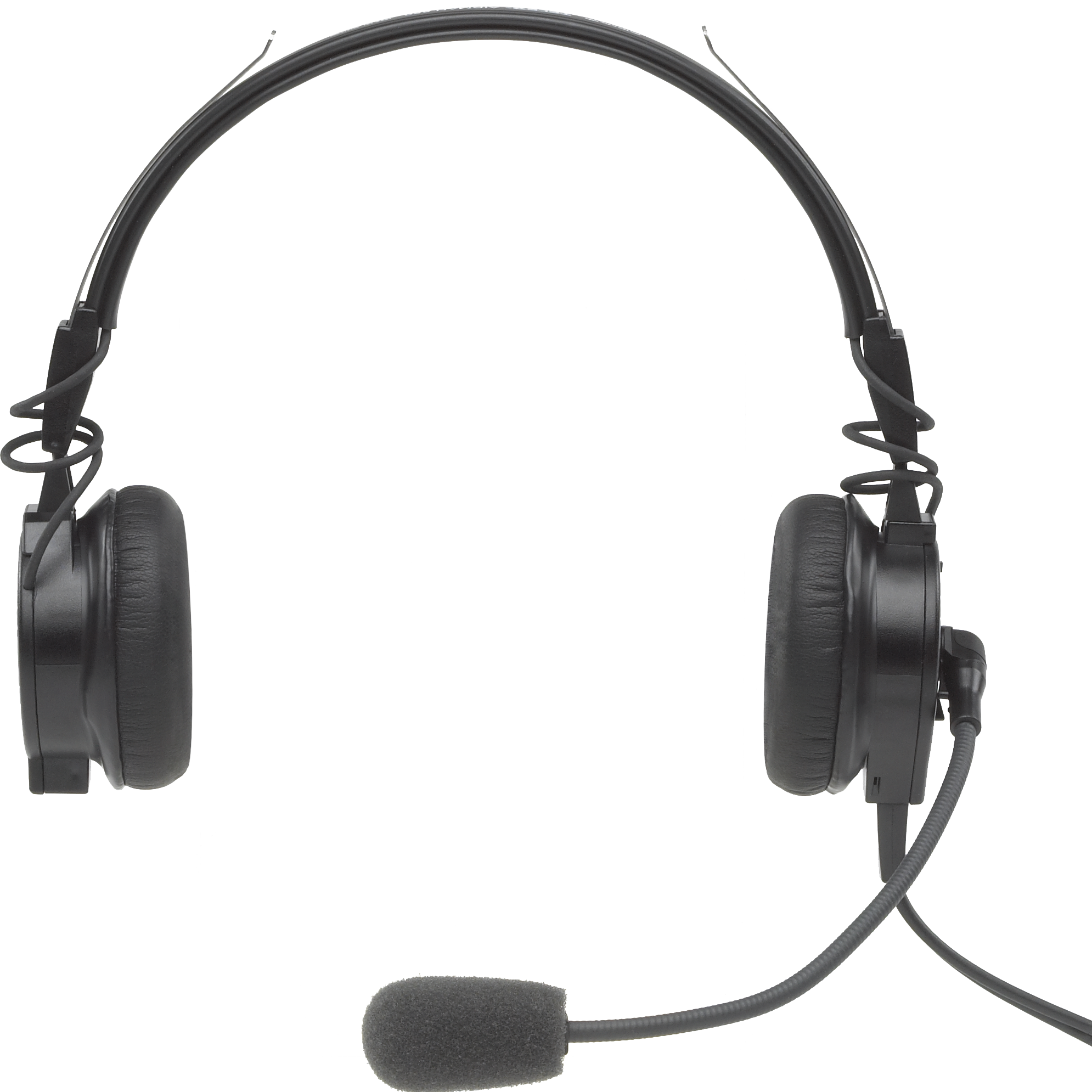

Airman 850 |
Airman 7+ |

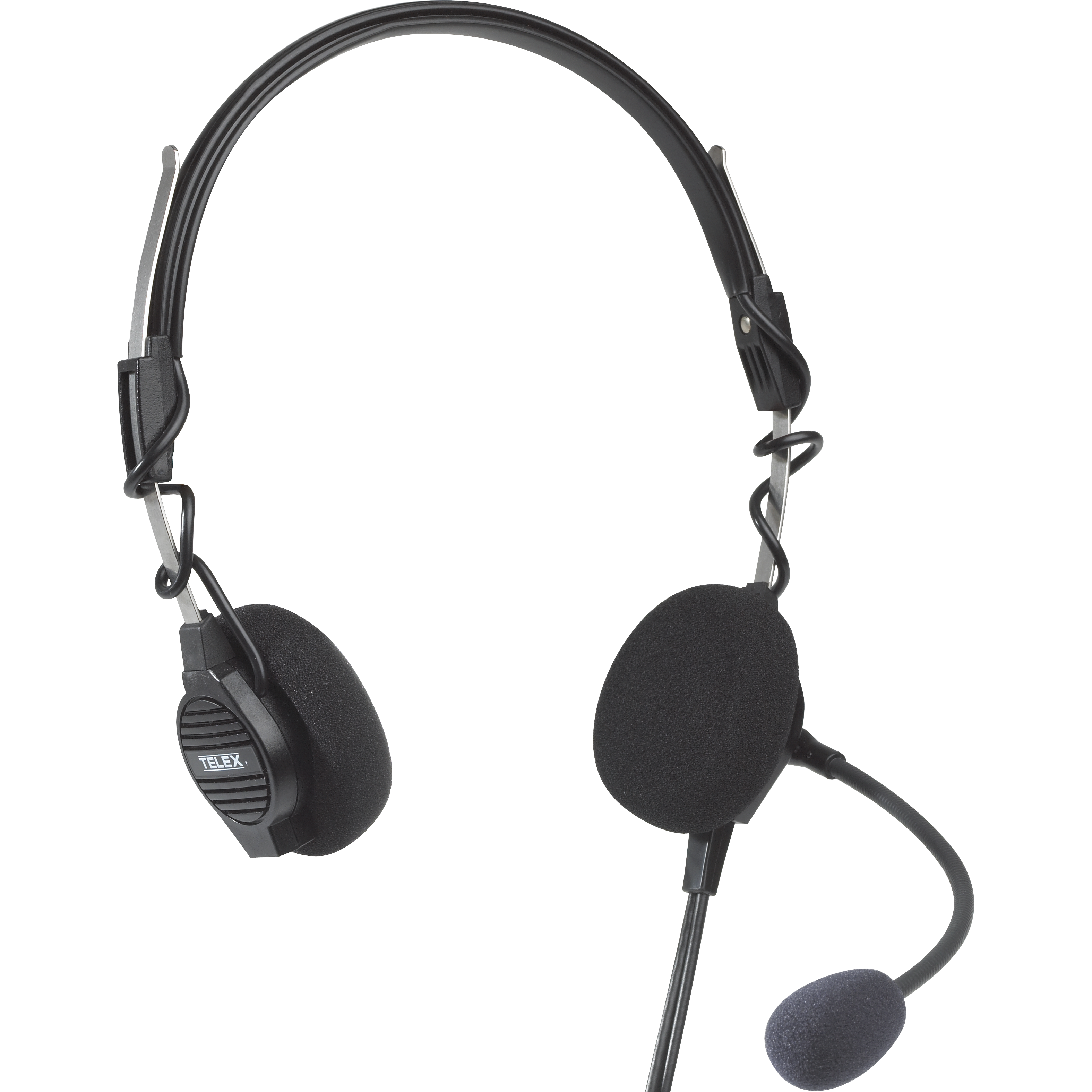

Airman 750 | |
| Impedance | 600 Ω (±20%) | 600 Ω (±20%) | 150-600 Ω (±20%) | 150-600 Ω (±20%) | |
| Speaker Sensitivity | 92 ±5 dBSPL (normal), 98 ±5 dBSPL (high) | 93 dB SPL/ mW @ 1 kHz ±5 dB | 90 dB SPL/ mW @ 1 kHz ±5 dB | 90 dB SPL/mW @ 1 kHz | |
| Speaker Frequency Response | 315 Hz - 3.2 kHz | 350 Hz – 3.5 kHz | 350 Hz – 3 kHz | 100 Hz – 3 kHz | |
| Microphone Sensitivity | -28dB ±3dB re 1V/Pa at 1kHz, 12V | -28 dB re 1 V/Pa @ 1 kHz, 12 V | -51 dB re: 1 V/μbar @ 1 kHz, 12 VDC | -51 dB re: 1 V/μbar @ 1 kHz, 12 VDC | |
| Cord Length | 6 ft. +/-4 in. (1.8 m +/- 10 cm) | ~6 ft. (1.8 m) | ~6 ft. (1.8 m) | ~5.5-8 ft. (1.7-2.4 m) | |
| Noise Reduction | Active, up to 20 dB | Active, up to 15 dB | Active, up to 12 dB | Passive | |
| Power Requirements | via boom microphone | via boom microphone | Microphone Bias (requires boom microphone to be powered continuously) | via boom microphone | |
| FAA TSO Approvals | C-139a approved | C-139a approved | C57a and C58a | C57a and C58a | |
| Warranty | 3 years | 3 years | 3 years | 3 years | |
| Weight | AIRMAN8P-0210 (dual plug): ~4.4 oz (~125 g); AIRMAN8P-0211 (XLR Plug): ~4.4 oz (~125 g) | ~4.2 oz (119 g) | ~3.7-4.0 oz (105-113 g) | ~2.3-3.2 oz (65-91 g) | |
| Connector Type | PJ-068 & PJ-055 equivalent or XLR-5-12C | PJ-068 & PJ-055 equivalent or XLR-5-12C | PJ-068 & PJ-055 equivalent or XLR-5-12C | PJ-068 & PJ-055 equivalent or XLR-5-12C | |
| Learn More | Learn More | Learn More | Learn More | Learn More |
Show more specs
