IP-3002

  • User-friendly

    Combines console and software into a single easy-to-configure device, with flexible layout options and an enhanced GUI (Graphical User Interface).

    Simplifies management

    Makes onsite and remote system administration, configuration, and software updates quick and easy.

    Bridges systems

    Interconnects with a variety of systems using APIs (Application Programming Interface).

    Direct radio wireline IP interface upgradeable

    Upgradeable to Enterprise or Public Safety direct interfaces.

    Backwards Compatible

    Works in parallel with existing Telex IP-based consoles.

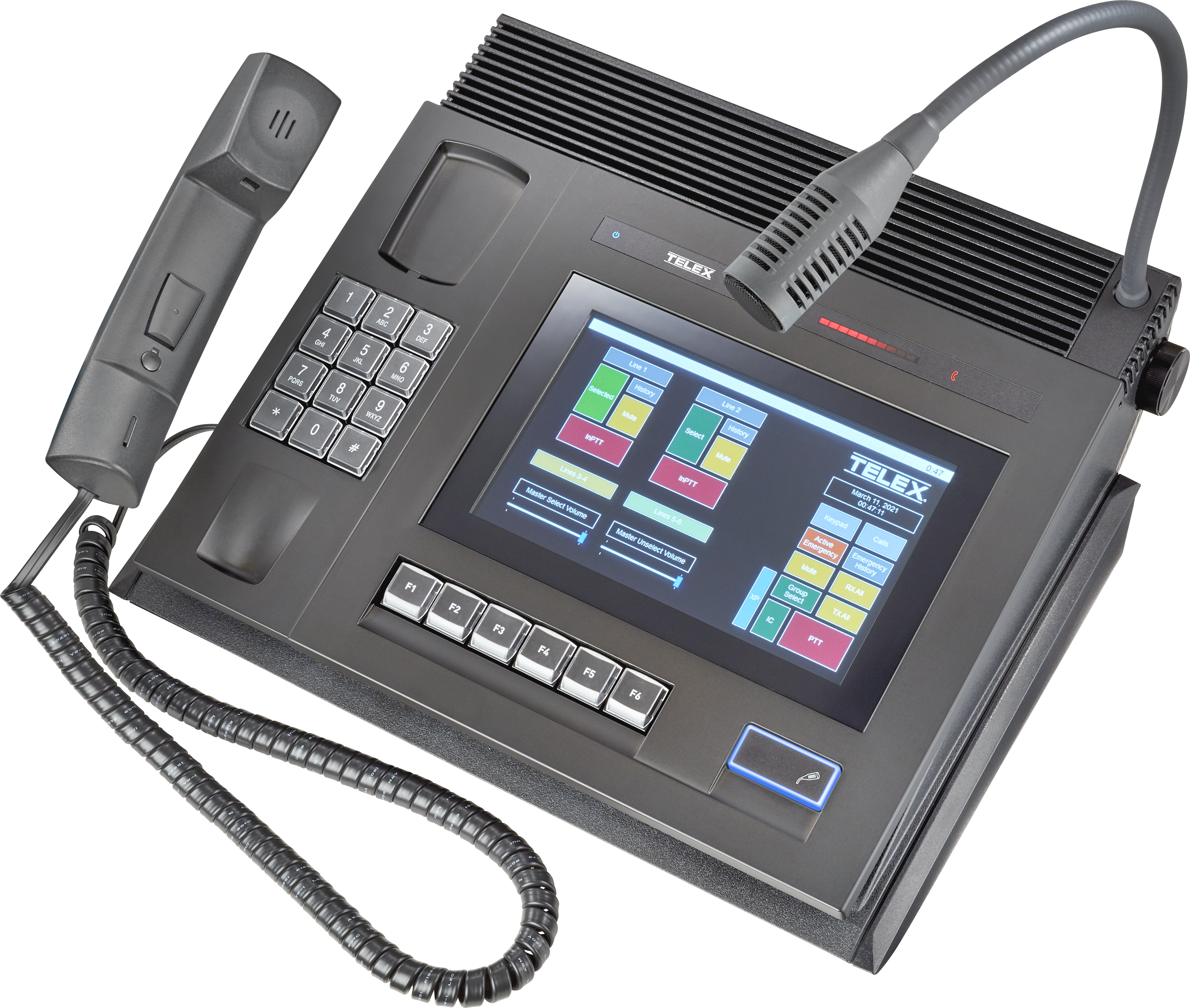

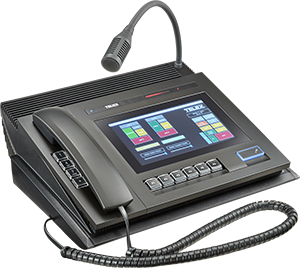

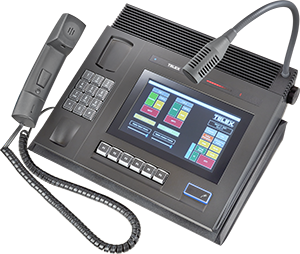

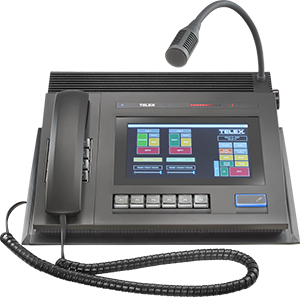

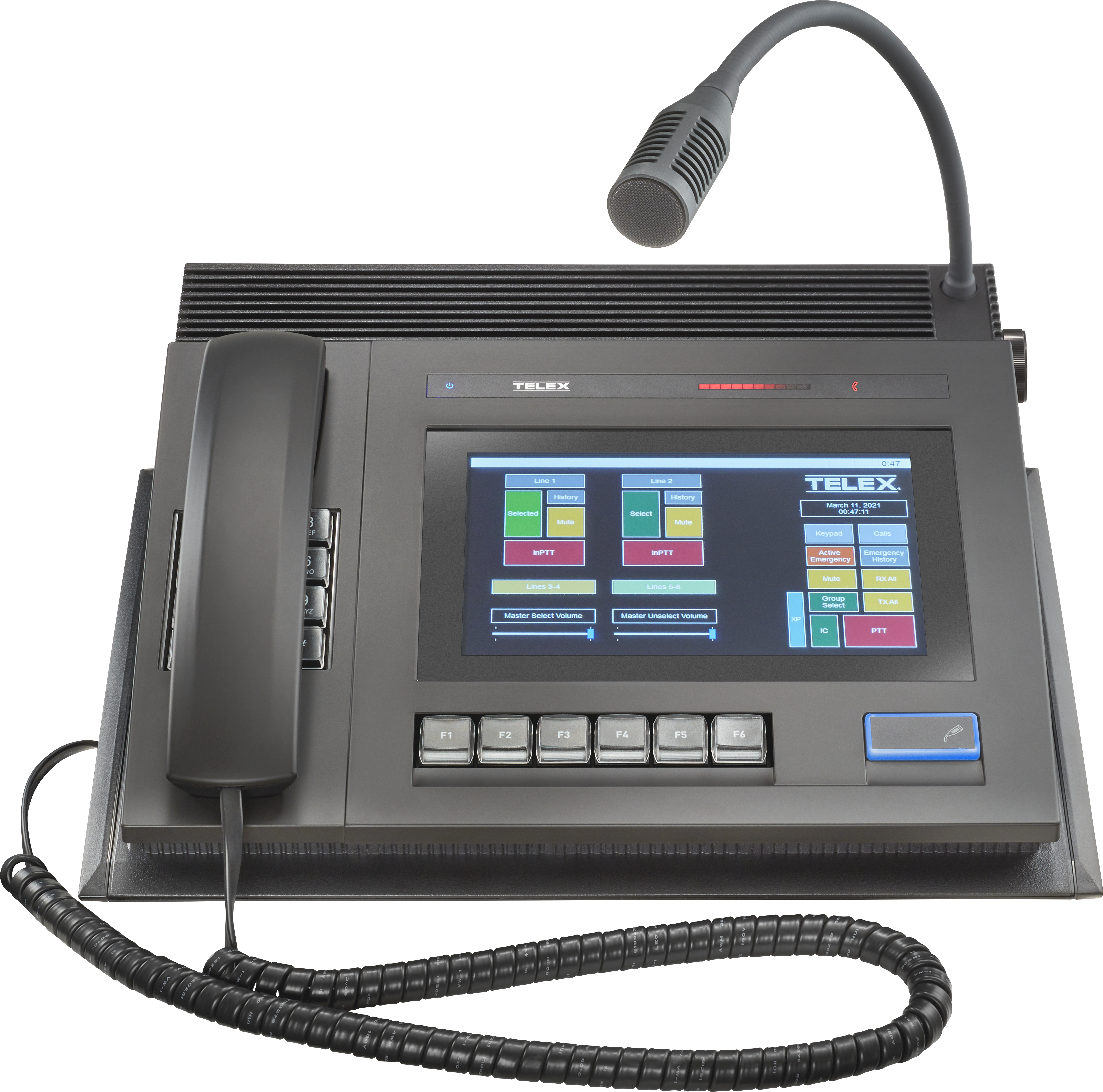

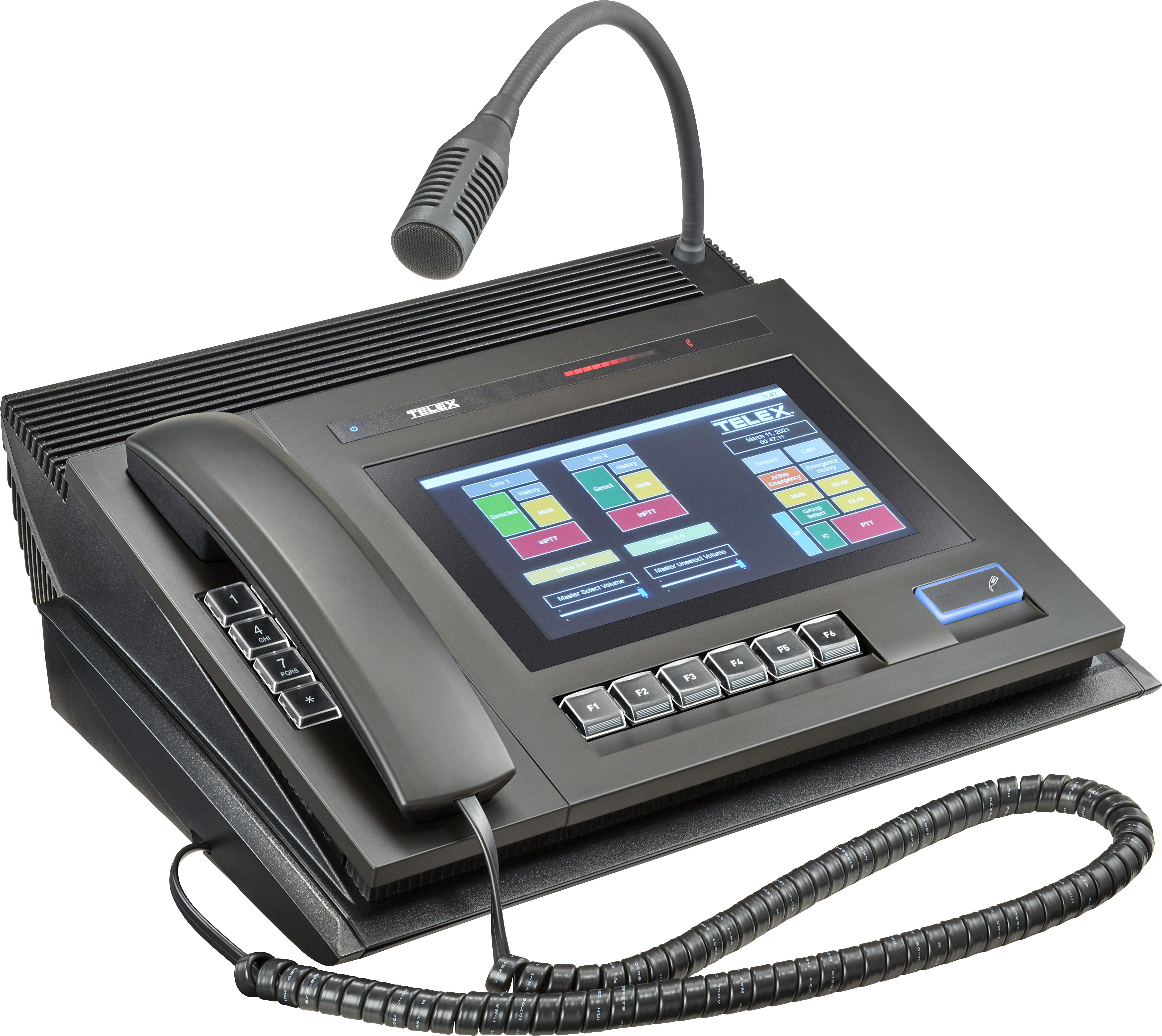

The IP-3002 two-line console is a part of the IP-3000 series of consoles that combine state-of-the-art hardware and software for the ultimate all-in-one UX (User Experience). The console features ergonomic comfort, fully customizable interfaces, backward-compatibility with existing Telex equipment (including the renowned IP-224 IP radio gateway), and easy to update software - all adding up to provide an optimal user experience while maximizing ROI (Return on Investment).

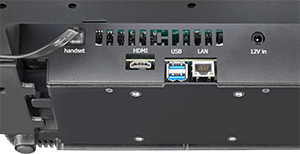

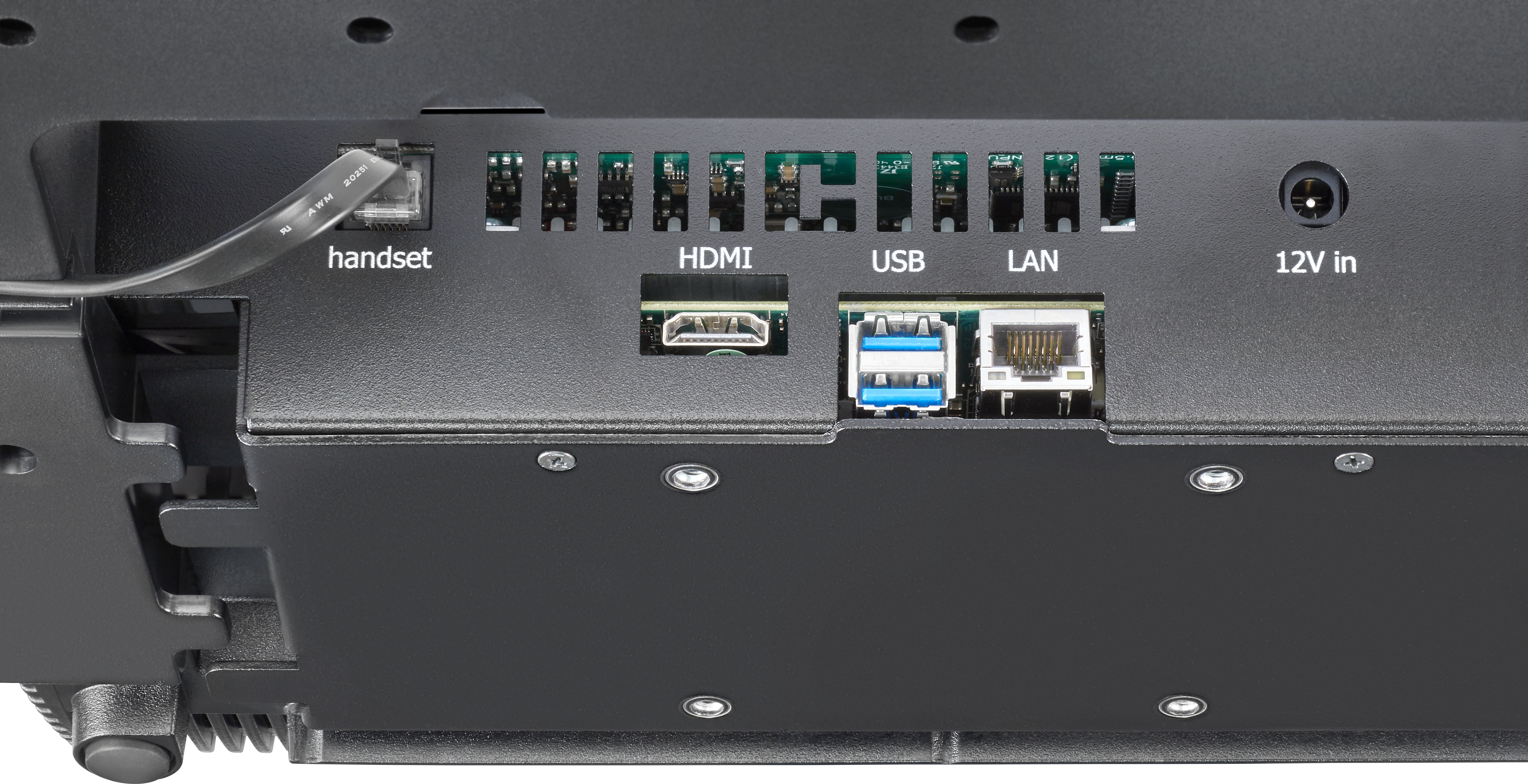

A superior hands-on user experience is ensured via a best-in-class feature lineup. Customers familiar with TSM (Telex System Manager) and C-Soft find configuring and using the console simple and efficient. With included features like a high-resolution TFT LCD touch screen display, high-quality speakers, USB ports, programmable keys and an output for an external monitor the console is quite capable. Optional features include an easy to install adjustable tilt stand, programmable keypad, and replaceable keys in a variety of colors.

Specifications

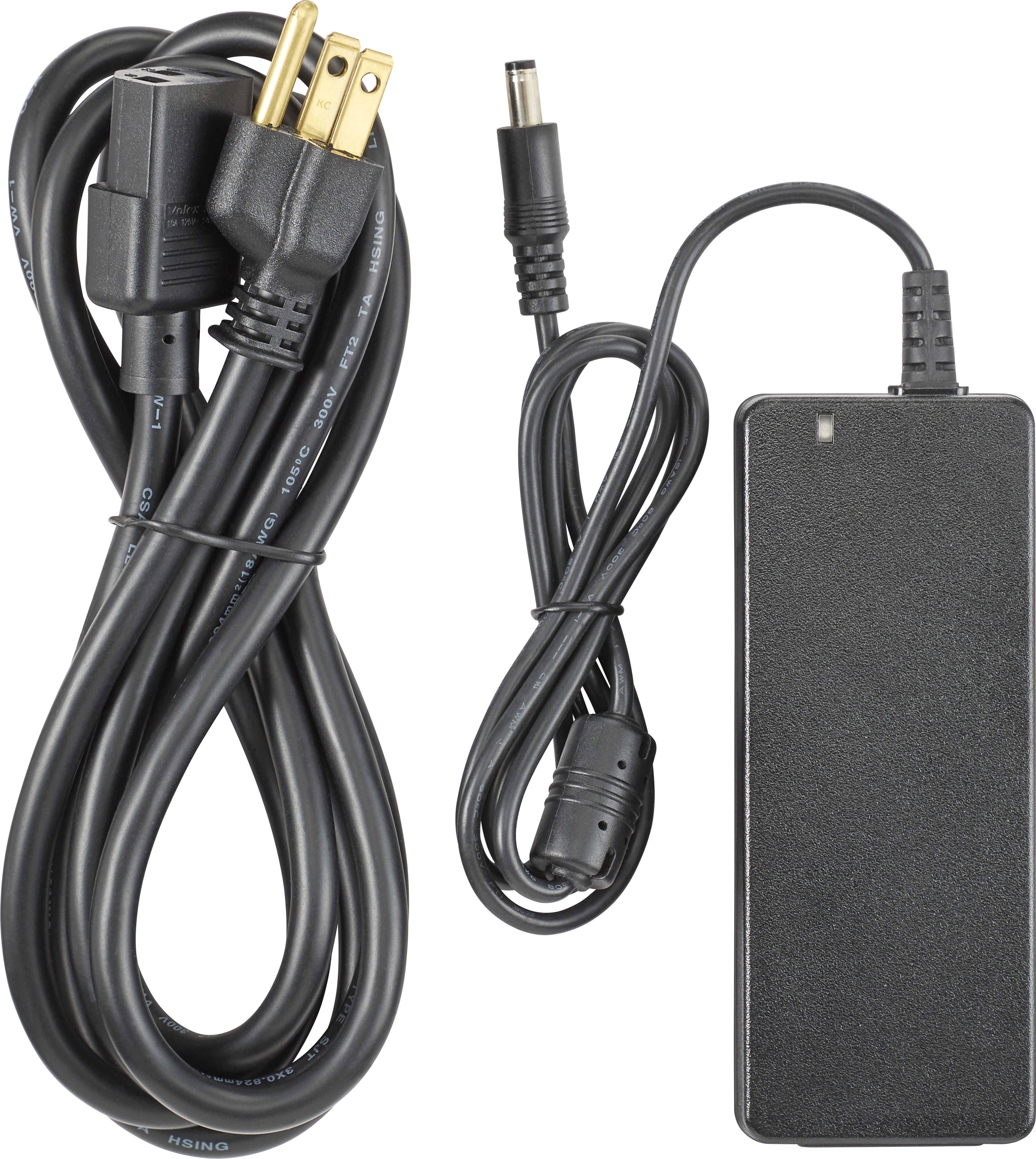

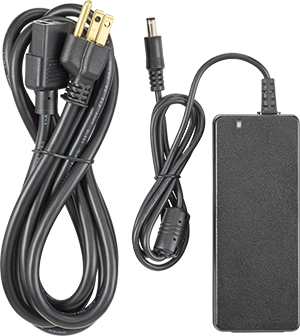

Power supply External 12V ±5% power supply
Output Max: 12VDC @5A (60W)
Input: 90 to 264VAC ~50/60Hz
Level VI energy efficiency rating
UL Certification
Active power 16.5 W (24.0 W maximum)
Display size 7.0 in
Display resolution 800 x 480
Touch screen Yes - 5-wire resistive
Processor Intel N3350 - 1.1 GHz
RAM 8 GB
Hard drive 64 GB SSD

USB audio codec 1
Speakers Selected and Unselected (2 x 2 W)
Volume control knobs 1
Volume control keys No
Goose-neck microphone Yes
Maximum input: 120 dB SPL
Illuminated PTT key Yes
Bar-graph VU meter displays Yes
Control keys 0
Programmable keys 6 (labelled F1 to F6)
Separate body and cover (allows for paper key
legends)
Protection (sealing) grade IP20 - Indoor use, limited amounts of falling dirt
External digital inputs 0
Footswitch interface No
Handset with PTT Integrated
Dimensions W x D x H (mm) 332 x 278 x 113
Unit weight 3.4 kg
Operating temperature 5° C to 35°C
Storage temperature -10° C to 50° C
Humidity range 20% to 80% (non-condensing)
Certifications and approvals EN 55032:2012
EN-55024:2010
EN-61000-3-2:2014
EN-61000-3-3:2013
FCC Part 15
Canada\'s ICES-003 Issue 6
RoHS
REACH
N2580
