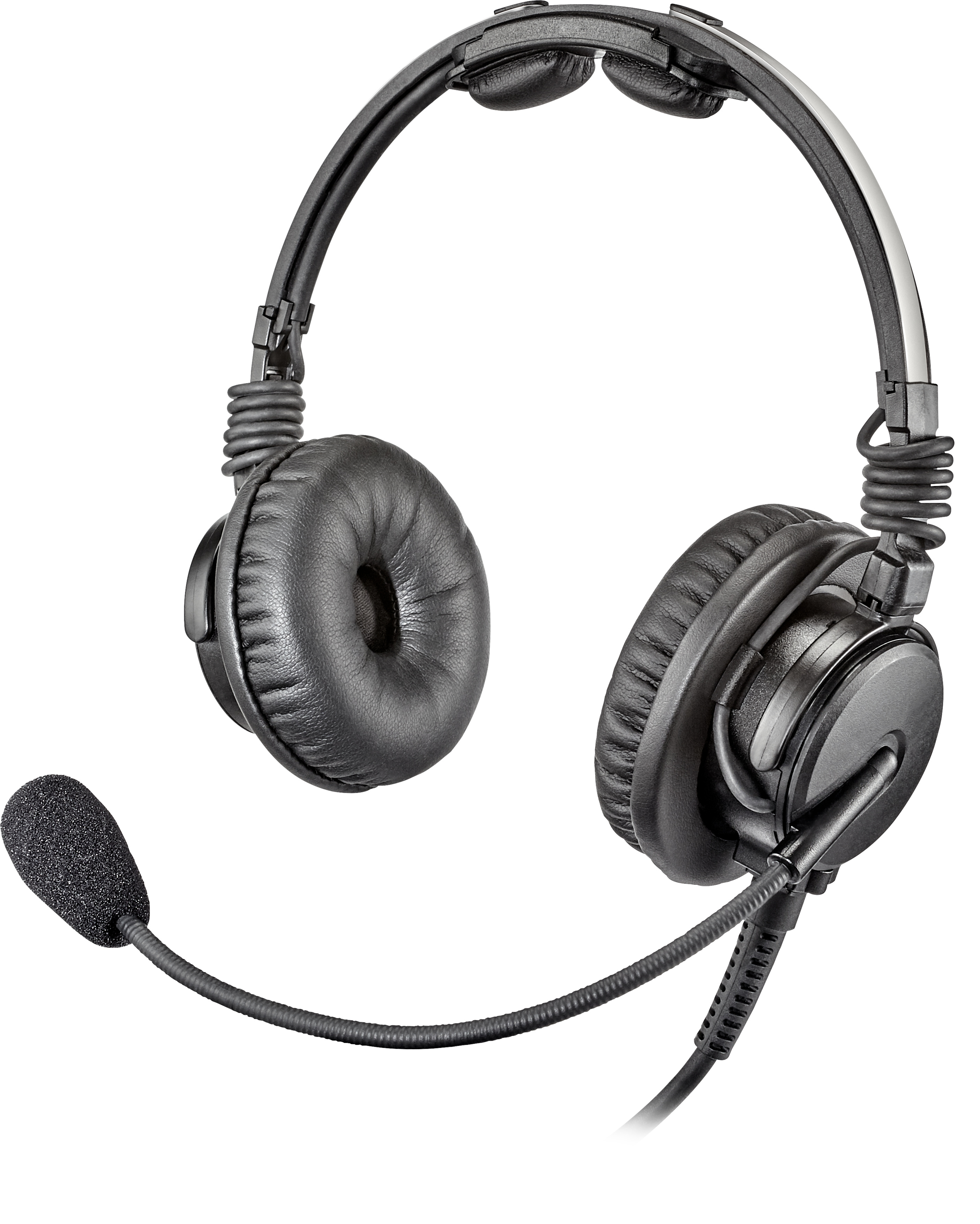

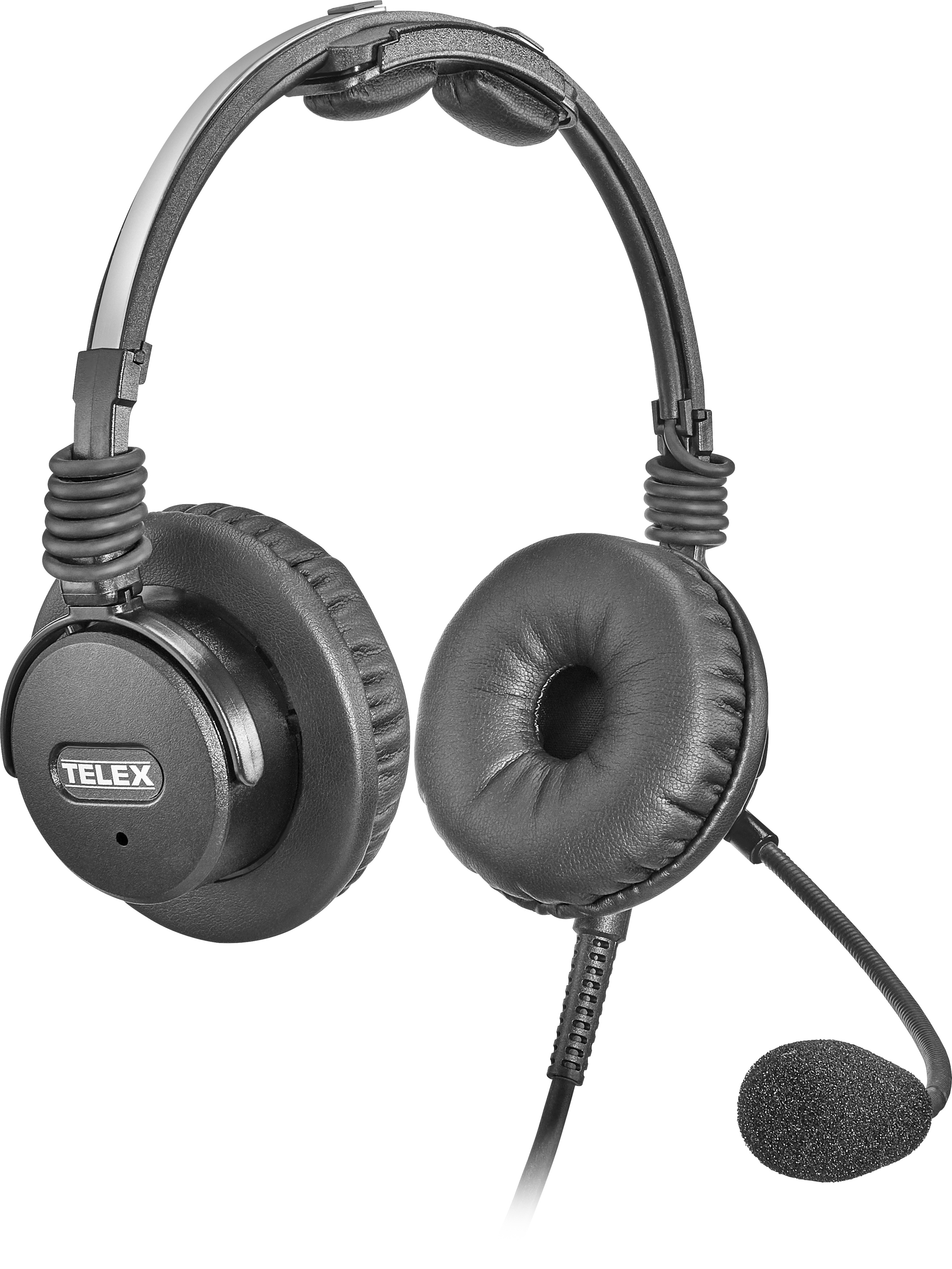

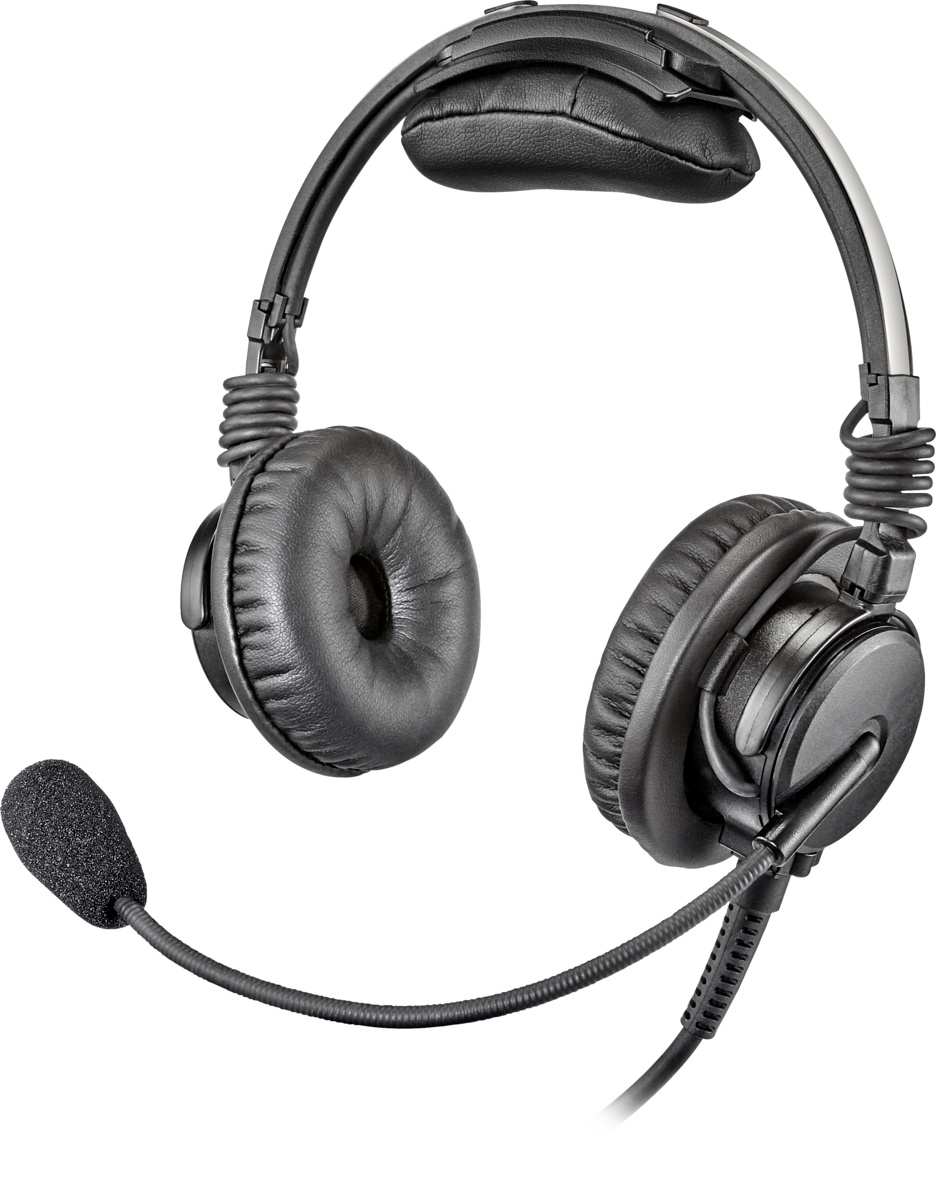

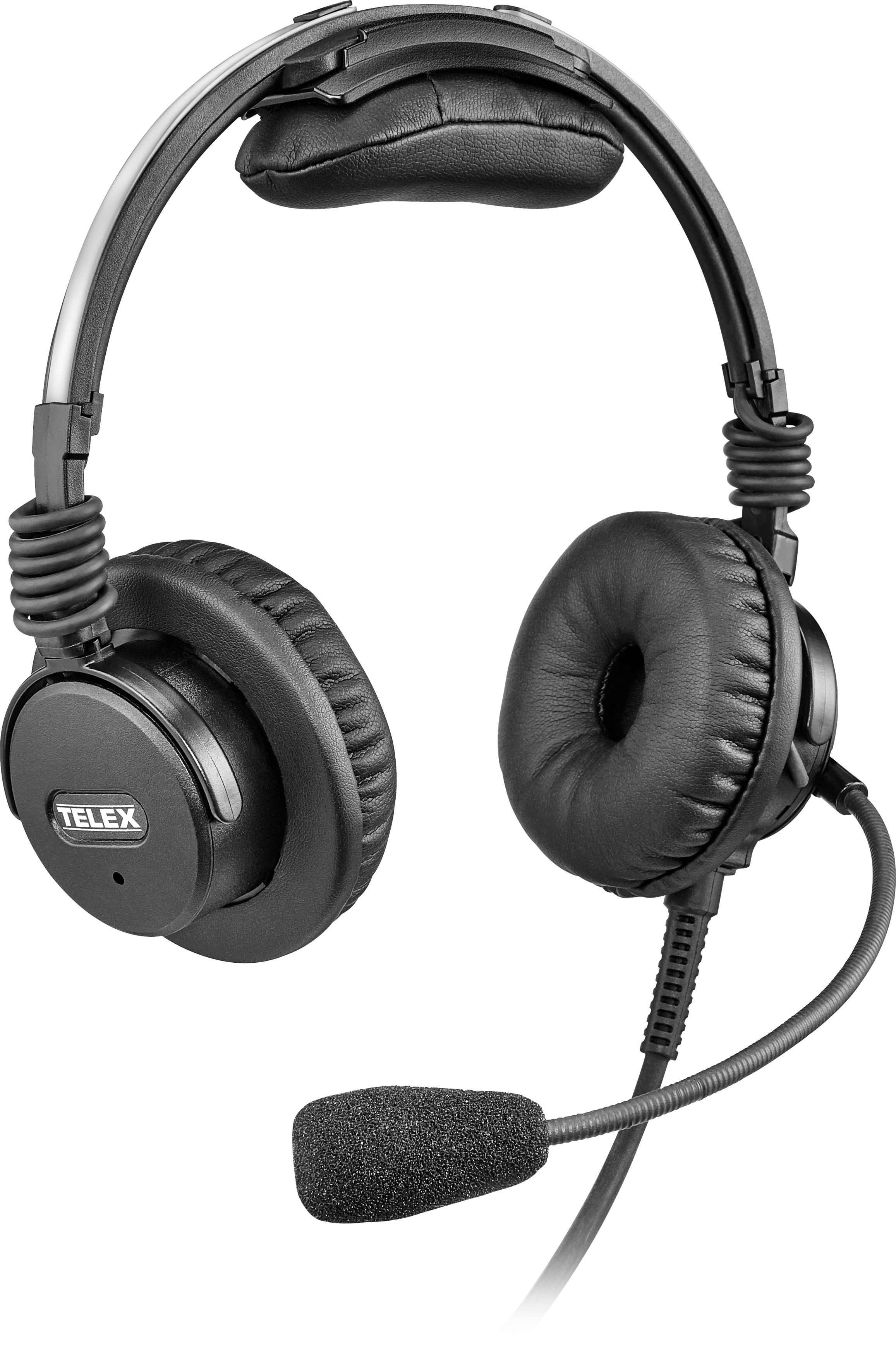

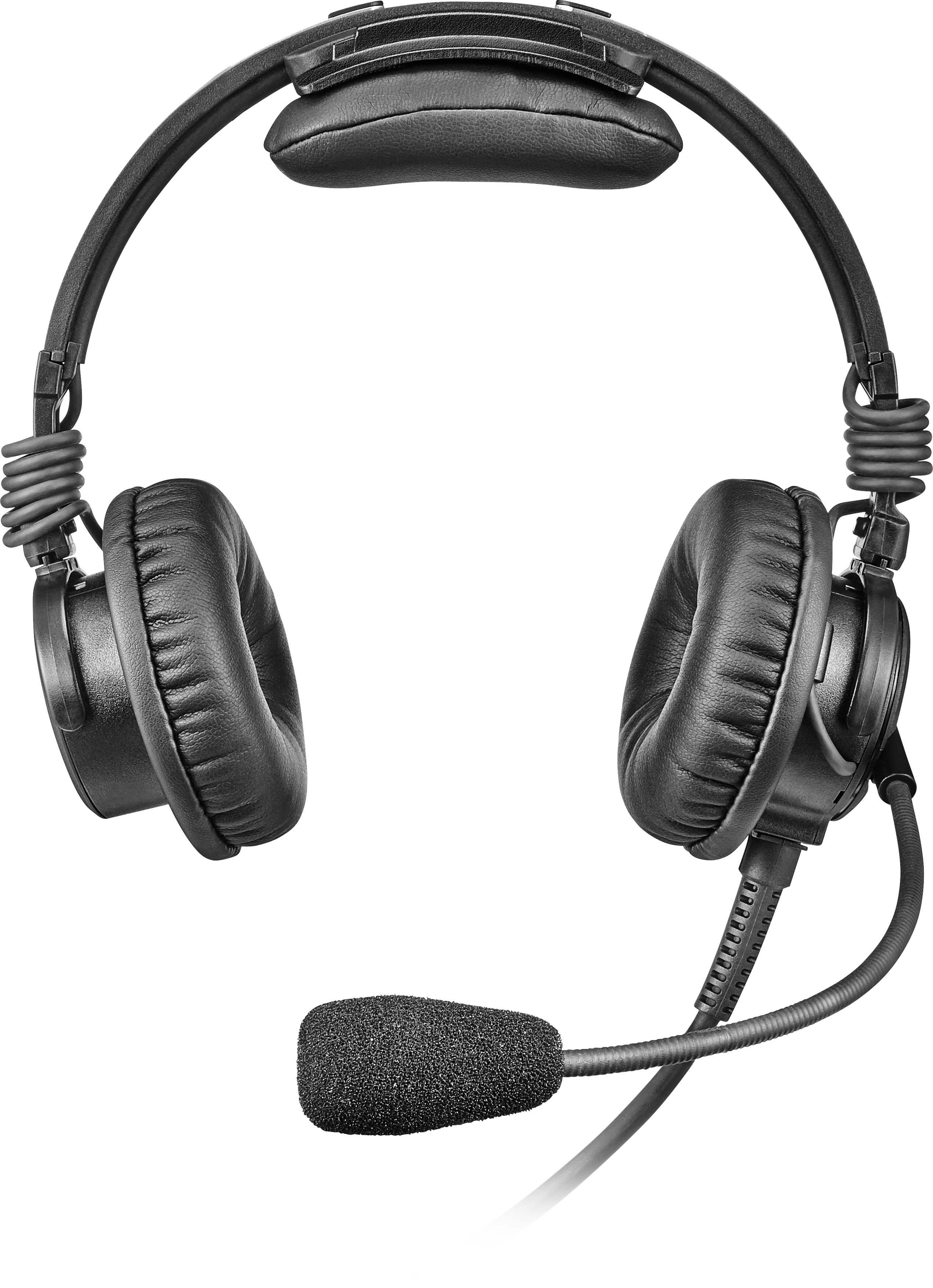

Airman 7+
Deluxe ultra-lightweight headset
- On-the-ear design with large soft, pliable leatherette ear cushions and headband pads.
- Flexible boom-mounted, noise-reducing microphone that can be positioned for right or left-side use.
- Stainless steel headband and pivot points for superior durability.
- FAA TSO C-139a approved
The Airman 7+ ultra-lightweight passive noise reduction headset from Telex is a non-ANR version of the Airman 8+, designed for commercial and business pilots. It offers enhanced passive noise reduction, reducing fatigue-inducing background noise while keeping engines and conversations audible for a less isolated cockpit experience.
The Airman 7+ features large ear cushions, a durable stainless steel headband, and a flexible boom-mounted microphone for clear communication. With FAA and EASA compliance, it ensures exceptional comfort, sound quality, and reliability. Available with 2PJ or XLR5 plugs.
Specifications
| Headphones | |||
| Type | Dynamic | ||
| Nominal impedance (Ω) | 600 Ω ±20% @ 1 kHz | ||
| Frequency response (Hz) | 315 Hz – 3,150 Hz <15 dB max. to min. over the range | ||
| Speaker sensitivity (dB SPL) | 92 dB SPL ±5 dB | ||
| Microphone and Amplifier | |||
| Microphone element type | Electret condenser; Noise cancelling | ||
Specifications | |||
| Sensitivity @ 1 kHz (dBV/Pa) | -28 dBV/PA ±3 dB, 8V |
| -28 dBV/PA ±3 dB, 8V | 8 VDC – 16 VDC (470 Ω TSO load circuit) |
| Connector Type | |
| Type | Dual PJ connector Microphone - PJ-068 (equivalent)< Headphones - PJ-055 (equivalent) |
| Physical | |
| Headset weight with cord | |
| Weight (oz) | 6.77 oz |
| Weight (g) | 192 g |
| Headset weight without cord | |
| Weight (oz) | 4.4 oz |
| Weight (g) | 125 g |
| Cable length (ft) | 6 ft ±4 in |
| Cable length (m) | 1.80 m ±10 cm |
| Color | Black |
