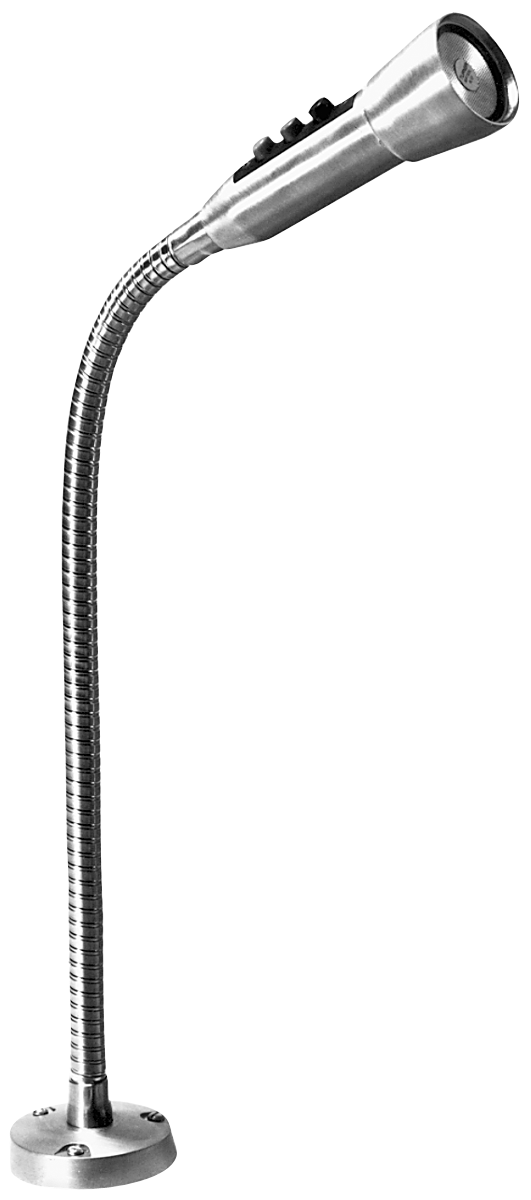

MP785

3-ZONE GOOSENECK PAGING MICROPHONE

  • Heavy duty, three-hole mounting flange
  • Extra-strength 16" steel-tubing flexible gooseneck arm
  • 3-zone color coded push button switches
  • 1.3 meter (52"), shielded 5-conductor cable

The MP785L is a dynamic, omnidirectional, low impedance gooseneck paging microphone with three color-coded push button switches to select the paging zones. Any and all zones may be called by depressing the appropriate buttons. Designed for applications where ruggedness, dependability and durability are the main requirements. Microphone housing is constructed of die-cast zinc alloy to stand up to the toughest abuse and conditions. Features a recessed aluminum grille with a windscreen and durable satin-chrome finish.

Specifications

Mic Application TypeGooseneck
Element TypeDynamic
Polar PatternOmnidirectional

Frequency Response100 Hz - 10,000 Hz
Impedance150 to 200 Ω
Sensitivity1.26 mV/PA (-58 dBV/PA)
Power RequirementNone / Passive
Connector TypeUnterminated
ZonesThree-zone

Downloads

Name Language Size Date
MP785 Engineering Data Sheet EN 899KB Mar 20, 2020
