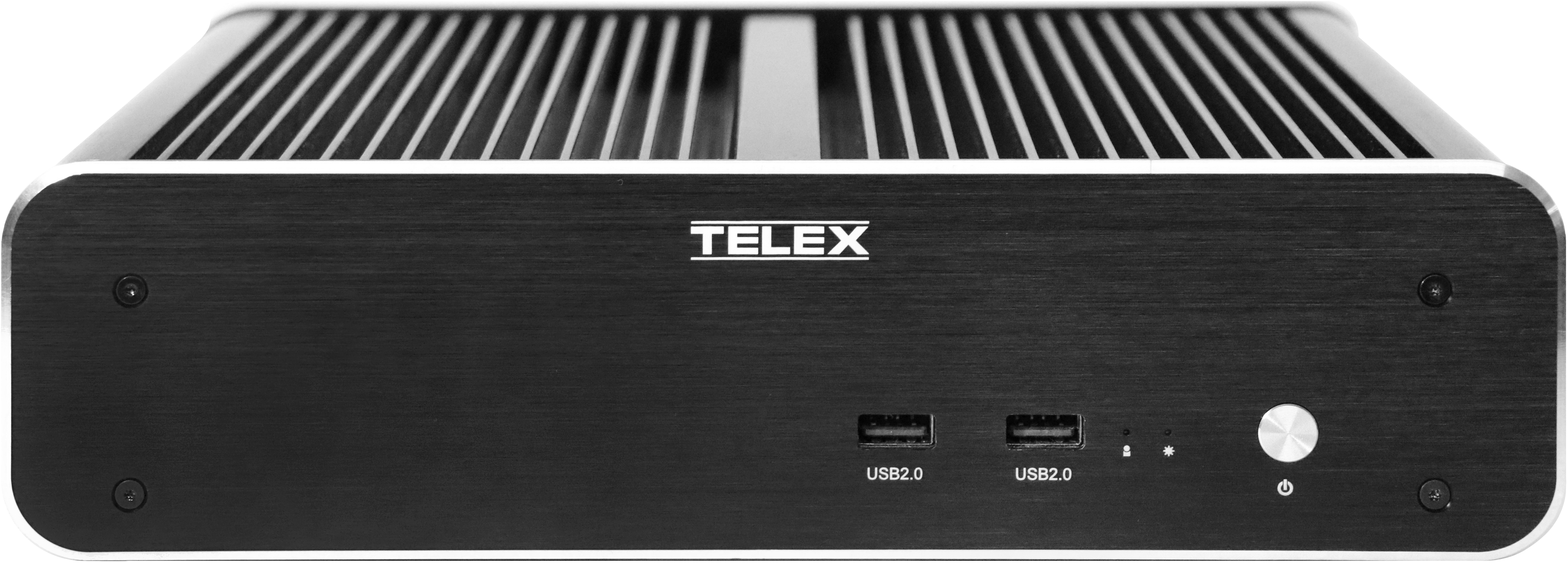

The NEXUS-IP-G1-US-IOT combines high performance and quiet operation, while taking up a fraction of the space when compared to a normal desktop PC. The included Windows 10 IoT Enterprise LTSC operating system is designed for maximum performance with the optimized hardware and Telex Radio Dispatch applications. This translates into a dispatch workstation that is easy to set up and configure. The included Seneca Backup and Restore application allows system administrators to establish a known good configuration in case the system needs to be stored.
Specifications
| PC specs | |
| Core i5 7500T | |
| 16GB RAM | |
| 250GB or larger SSD OS drive | |
| 1TB storage drive | |
| External power supply 90 watts energy efficiency rating level VI, UL and CE approved | |
| Wireless keyboard and mouse combo included | |
| FCC’s Declaration, RoHS, and CE Declaration of Conformance | |
Specifications |
|
| OS and applications | |
| Microsoft Windows 10 IoT Enterprise LTSC | |
| Advanced Seneca Backup and Restore Software | |
| Telex Dispatch applications preinstalled and ready for activation to reduce installation time | |
| Mechanical | |
| Customized fanless mini form factor | |
| Housing 10.34 in (W) x 8.46 in (D) x 2.70 in (H) (262.6 mm (W) x 215 mm (D) x 68.5 mm (H) plus stands) | |
| VESA mount 3.94 in x 3.94 in(100 mm x 100 mm) | |
| Wall mounting bracket (removable with bracket mounting instructions) included | |

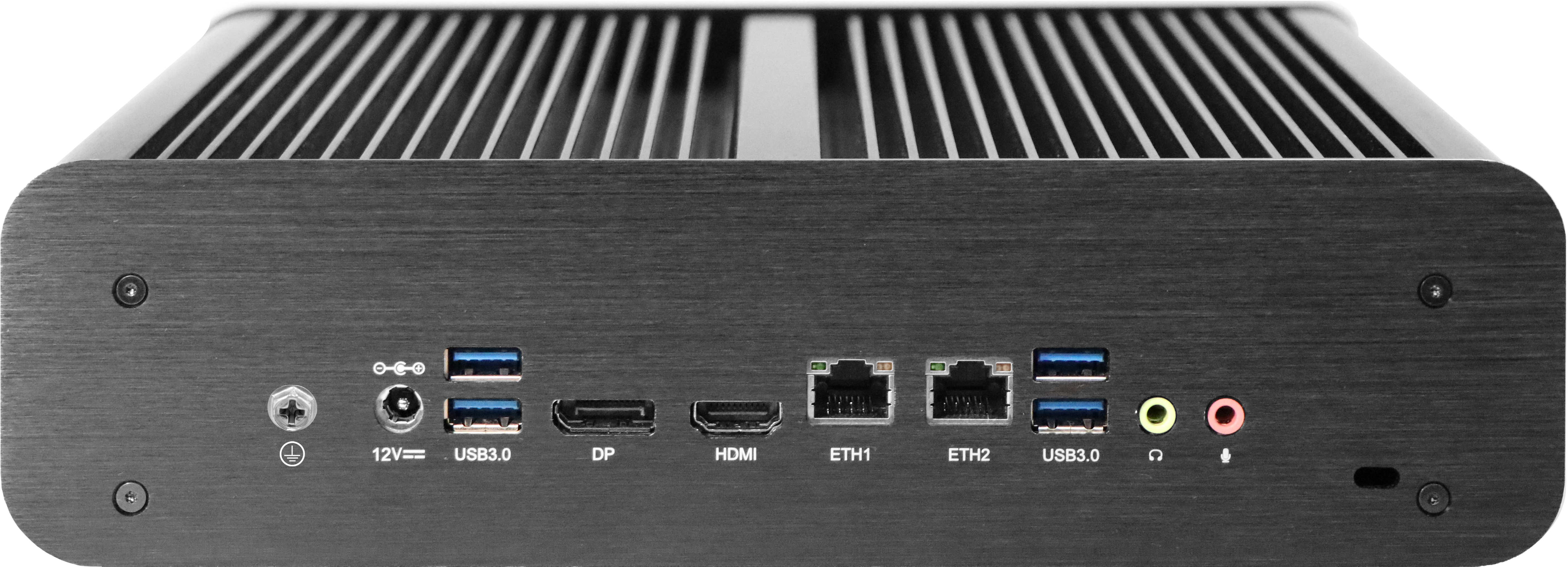

| I/O connections | |
| 1 HDMI | |
| 1 Display Port | |
| 4x USB 3.0 (back) | |
| 2x USB 2.0 (front) | |
| 2x Intel gigabit LAN ports | |
| 3.5 mm audio output | |
| 3.5 mm microphone input | |
Downloads
| Name | Language & Download |
|---|---|
| Telex Radio Dispatch Catalog | Download |
