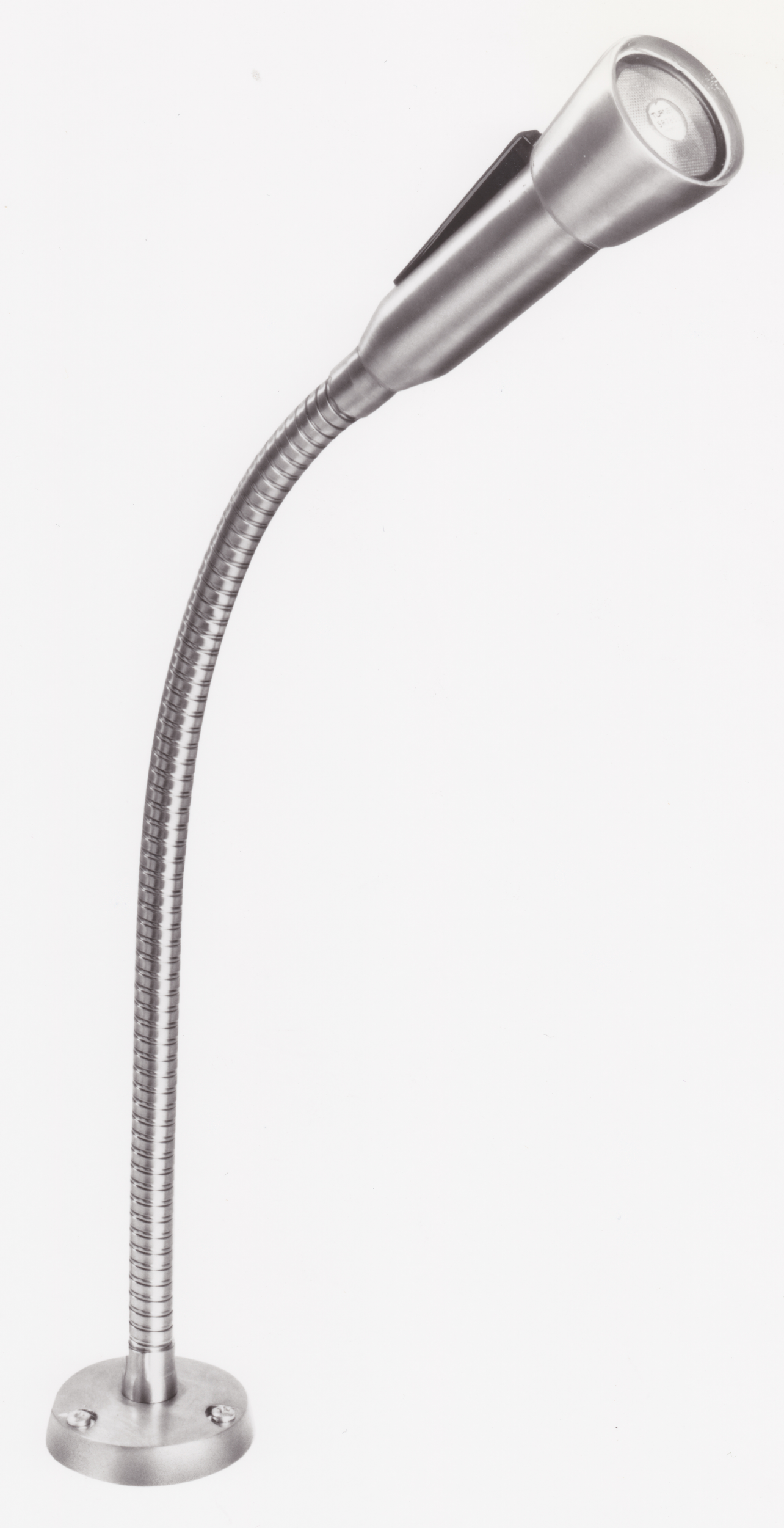

SR785L - GOOSENECK PAGING MICROPHONE, SWITCH NORMALLY CLOSED by Telex

SR785L

GOOSENECK PAGING MICROPHONE, SWITCH NORMALLY CLOSED

  • Heavy duty, three-hole mounting flange
  • Extra-strength 16" steel-tubing flexible gooseneck arm
  • Switch normally closed
  • 1.3 meter (52"), shielded 4-conductor (2 sheilded) cable

The SR785L is a dynamic, omnidirectional, low-impedance gooseneck paging microphone with normally-closed switch for single zone paging. Designed for applications where ruggedness, dependability and durability are the main requirements. Microphone housing is constructed of die-cast zinc alloy to stand up to the toughest abuse and conditions. Features a recessed aluminum grille with a windscreen and durable satin-chrome finish.

Specifications

Mic Application TypeGooseneck
Element TypeDynamic
Polar PatternOmnidirectional

Frequency Response100 Hz - 10,000 Hz
Impedance150 to 200 Ω
Sensitivity1.26 mV/PA (-58 dBV/PA)
Power RequirementNone / Passive
Connector TypeUnterminated
ZonesSingle-zone
