IP‑3100 Series IP Console

Our latest Generation IP Radio Dispatch Console

• User Friendly
  Combines console, software and direct IP interfaces into single easy-to-configure devices, with flexible layout options and an enhanced GUI
• Simplified Management
  Makes system administration, configuration and software updates quick and easy, whether on-site or remote
• Bridging Systems
  Interconnect with a variety of systems seamlessly using industry standards and APIs

The IP-3100 series is the next-generation of industry-leading Telex IP-based radio dispatch consoles. Three form factors are available: The IP-3102 (two lines), the IP-3108 (eight lines) and IP-3018 (18 lines). Each is available in public safety, enterprise or standard configurations to suit the specific requirements of different dispatch verticals. Public safety and enterprise configurations are equipped with direct IP interfaces for interoperability with digital radio equipment, e.g. NEXEDGE®. Public safety-configured devices also offer encryption and compliance with the P25 suite of system standards. Standard configuration models connect to an external IP-224, making them a cost-effective choice for integration with existing Telex systems, and may be upgraded to public safety and enterprise configurations as needed.

With feedback from dispatch professionals worldwide about our IP-3000 series, we added the following features to improve user operations.

• Headset-Ready: Hands-free communication for critical tasks.

• External Speaker Integration: Enhanced clarity for loud environments.

• Footswitch Support: Simplified operations for better workflow.

Read more

The IP-3100 series will offer packet encryption, monitoring, user permissions, verification and third-party VPN for secure remote use. As well as being compatible with legacy Telex hardware, the series is interoperable with a wide range of industry technologies – including IPv6, upcoming Push-to-Talk over Cellular (PoC), SIP telephony, radio protocols, security enhancements and more. APIs enable seamless integration with other types of systems.

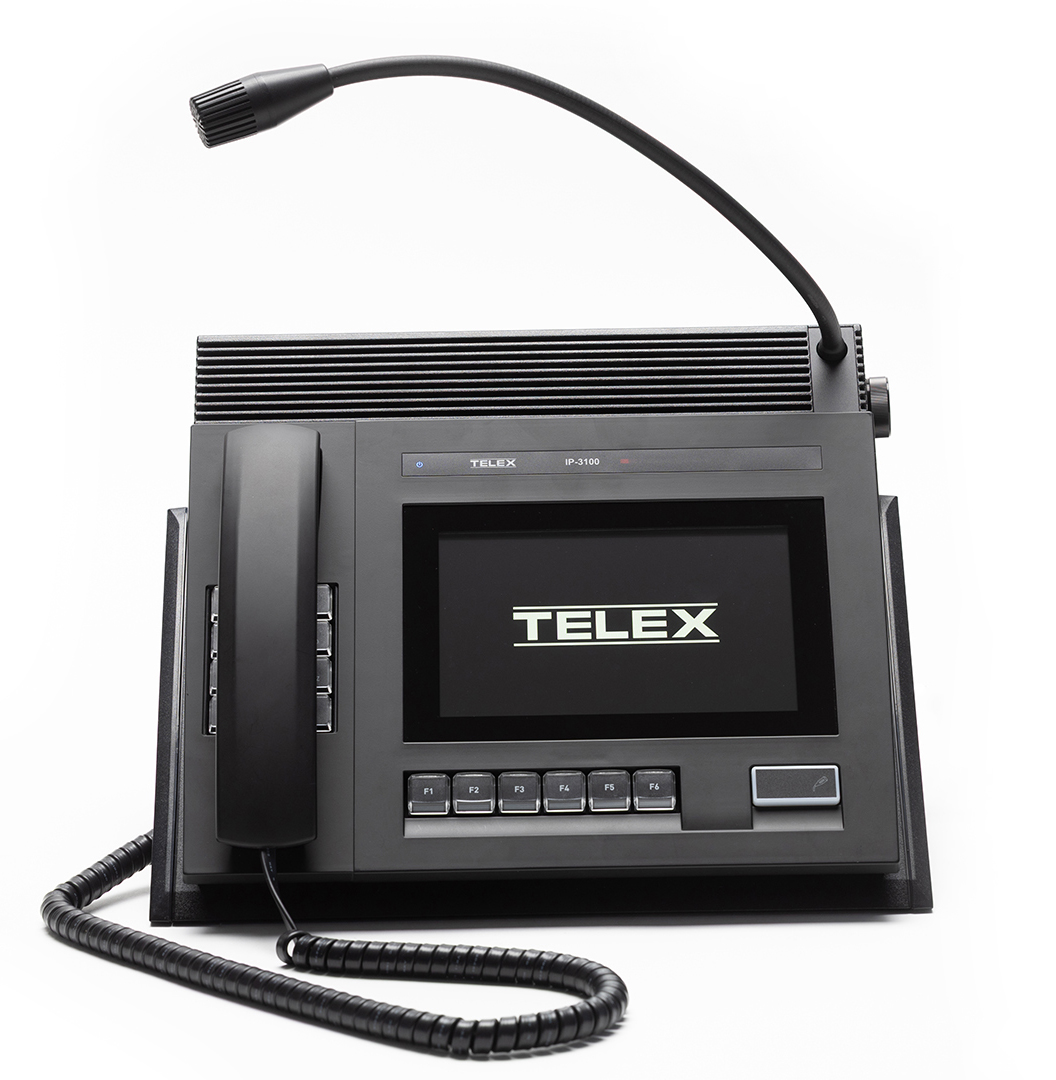

Smooth hands-on functionality is ensured via the IP-3100's best-in-class feature lineup. High-resolution TFT LCD 15:9 widescreen video displays (7" & 15.6"), reliable and responsive touchscreens, and high-quality speakers deliver an excellent audio-visual performance in any lighting conditions or working environment. Each console is equipped with USB ports and an output for an external monitor. The units are easy to mount and positioning can be further adjusted using the optional adjustable incline mechanism. User I/Os include a handset with DTMF pad, a gooseneck microphone with illuminated PTT key, and six (IP-3102/IP-3108) or 16 (IP-3118) programmable and color-coded hot keys. Additional programmable keypads are available as options. The consoles come with a choice of handset or gooseneck microphone; headsets may also be used via an RHB-1 Gen 2 headset adaptor from our ADHB-4 (Advanced Digital Headset Box) family.

New versions of C-Soft and Telex System Manager (TSM) offer enhanced layout design, GUI personalization and system management - all geared towards supporting simple menus and more streamlined workflows.
