Airman 8+

NEW Our most comfortable, best battery-free active noise reduction aviation headset

  • Flexible boom-mounted microphone, positionable for right- or left-side use
  • Light-weight, battery-free ANR with onboard fail-safe to ensure constant communication

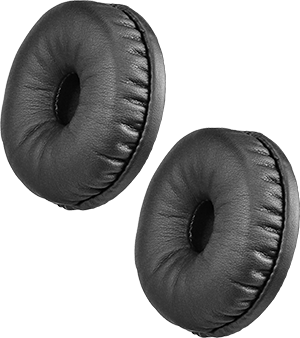

  • Larger soft leathette ear cushions and headband pad
  • Stainless steel headband and pivot points for superior durability
  • FAA TSO C139a approved

The Telex Airman 8+ is a lightweight noise-reducing headset designed specifically for optimizing pilot communications in commercial and business turbine aircraft. Building on the tradition of the Airman 850 and the Airman 8, Airman 8+ has improved ANR capability and comfort. The Airman 8+ is among the lightest Active Noise Reduction headsets on the market and one of only three FAA TSO C139a approved ANR headsets to utilize Telex’s proprietary battery-free system. Larger pliable ear cushions and headband pad combined with dual axis ear cup pivots provide long flight wearing comfort.

Specifications

Headphones
Type Dynamic
Impedance 600 Ω ±20% @ 1 kHz
Frequency Response (Per RTCA DO-214a)
<15dB max. to min. over the range of
315 to 3150Hz
Sensitivity (Per RTCA DO-214a)
92 ±5 dBSPL (normal)
98 ±5 dBSPL (high)

Microphone & Amplifier
Element Type Noise-canceling amplified electret
Frequency Response (Per RTCA DO-214a)
Sensitivity (Per RTCA DO-214a)
-28dB ±3dB re 1V/Pa at 1kHz, 12V
Operating Voltage (Per RTCA DO-214a)
8-28 VDC at boom microphone (470 Ω load circuit) or at pin 5 of the XLR connection
ANR
Power Supply
-0210 Receives power from boom microphone connection (See operating voltage, above)
-0211 Receives power from either the boom microphone connection or pin 5 (See operating voltage, above)
Attenuation Provides nominal noise reduction 18 dB or higher between 100 Hz and 400 Hz and 15 dB (minimum) of attenuation between 100 Hz and 300 Hz
Connector Type
Dual Plug Connector (AIRMAN 8P-0210)
Microphone PJ-068 (equivalent)
Headphones PJ-055 (equivalent)
XLR Connector (AIRMAN 8P-0211)
Microphone & Headphones 5-pin Male XLR
Physical
Weight
headset weight (with cord) wearing weight (without cord)
AIRMAN8P-0210 (dual plug) ~6.70 oz (~190 g) ~4.4 oz (~125 g)
AIRMAN8P-0211 (XLR Plug) ~6.77 oz (~192 g) ~4.4 oz (~125 g)
Cord Length 6 ft. +/-4 in. (1.8 m +/- 10 cm)
Color Black and Stainless Steel
Controls Active Noise Reduction On/Off Switch Volume Normal/High Switch
NOTE Control operation, installation instructions, additional specifications can be found in the Operating Instructions.

Videos

Downloads

Name Language Size Date
Aviation Headsets Catalog EN 1.38MB Jun 24, 2020
Name Language Size Date
Airman 8+ Engineering Data Sheet EN 698KB Jul 2, 2020
Name Language Size Date
Airman 8+ Flyer EN 623KB Jun 24, 2020

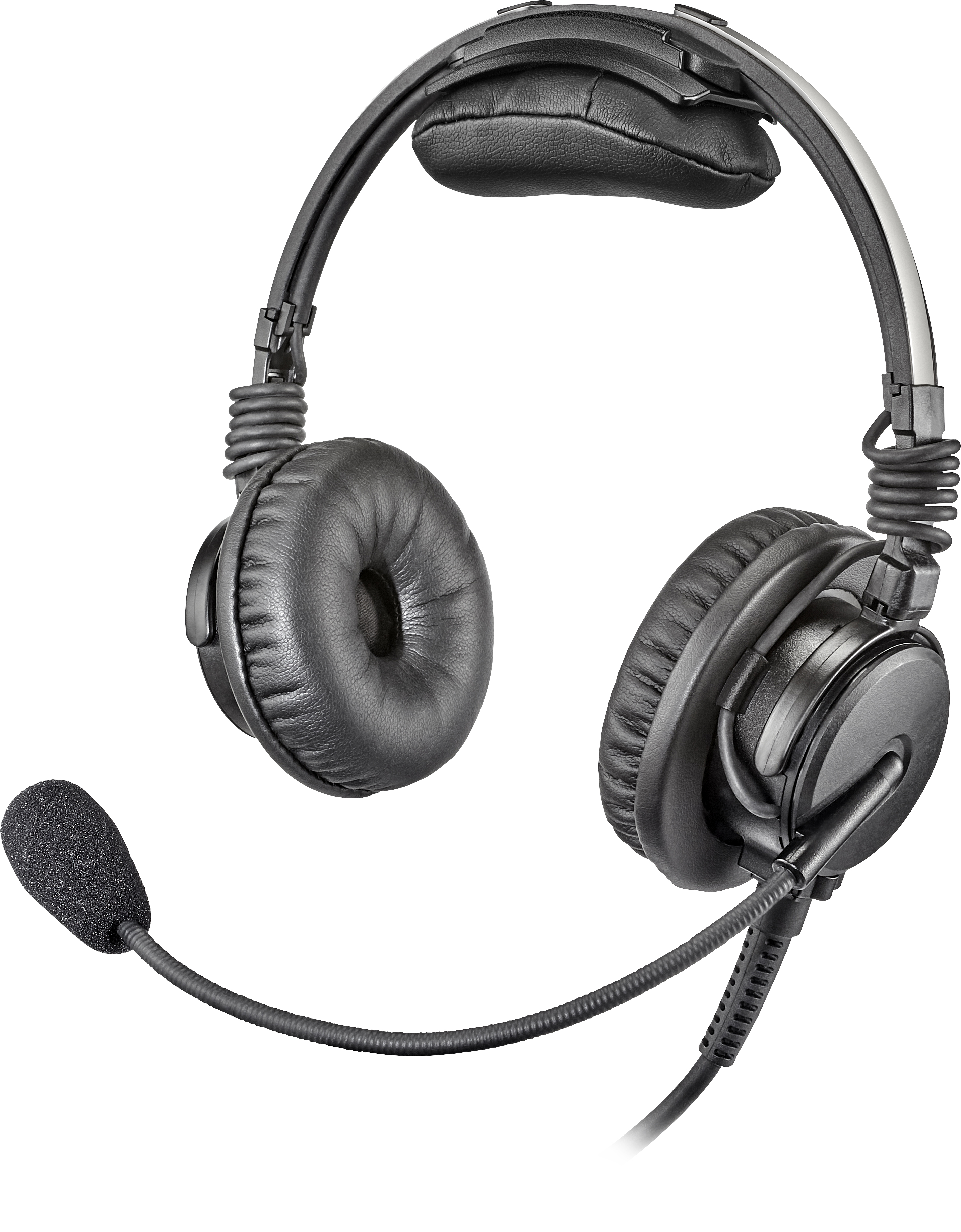

Airman8plus Left wLargePad

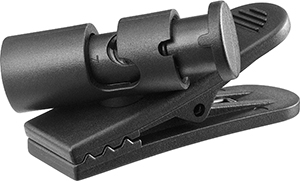

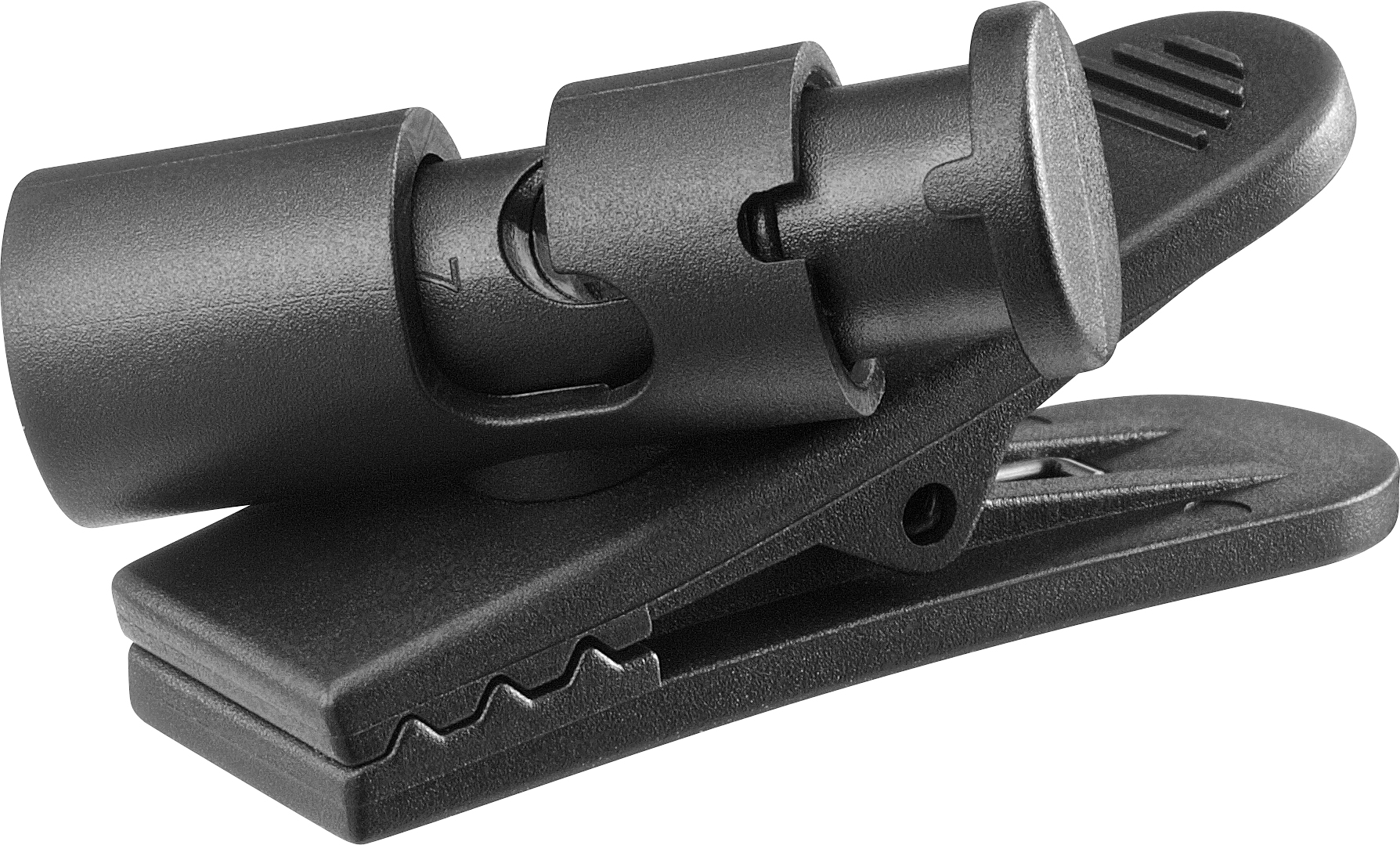

Airman ClothingClip

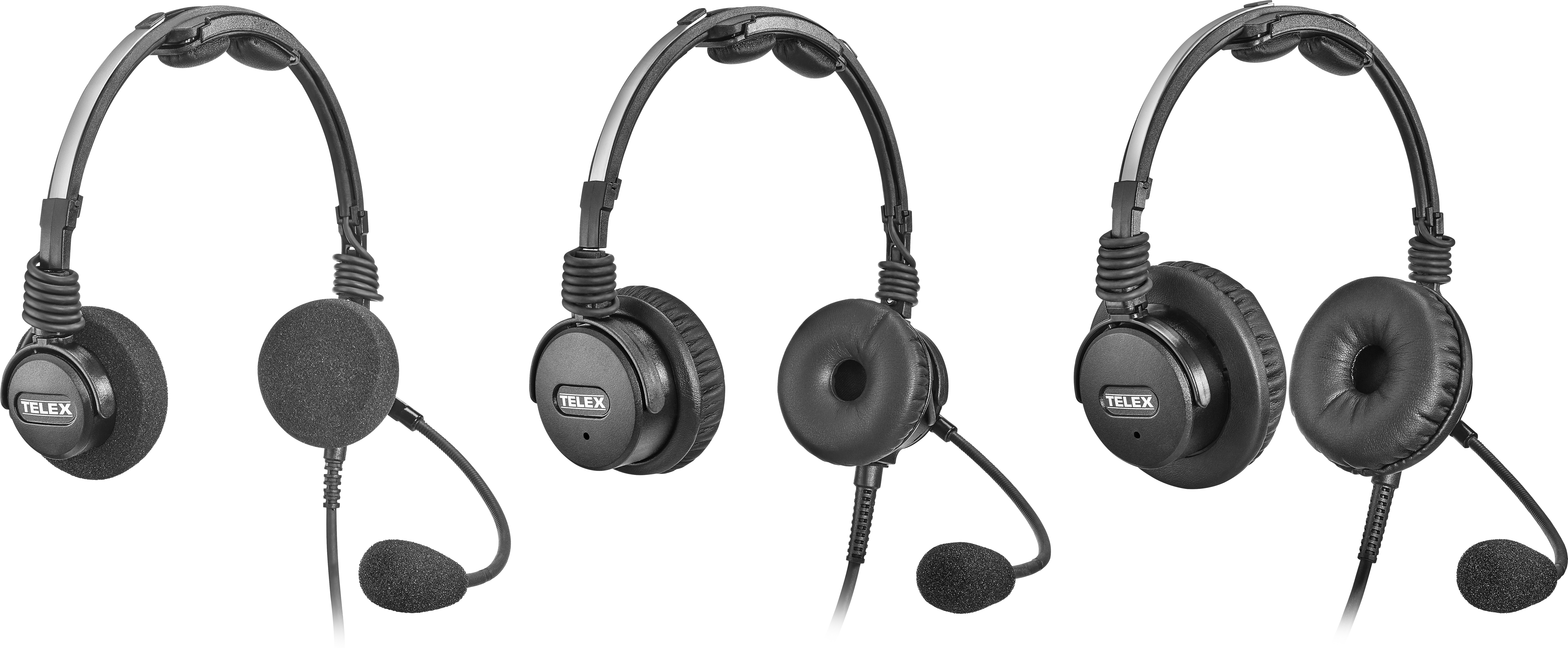

Airman Family

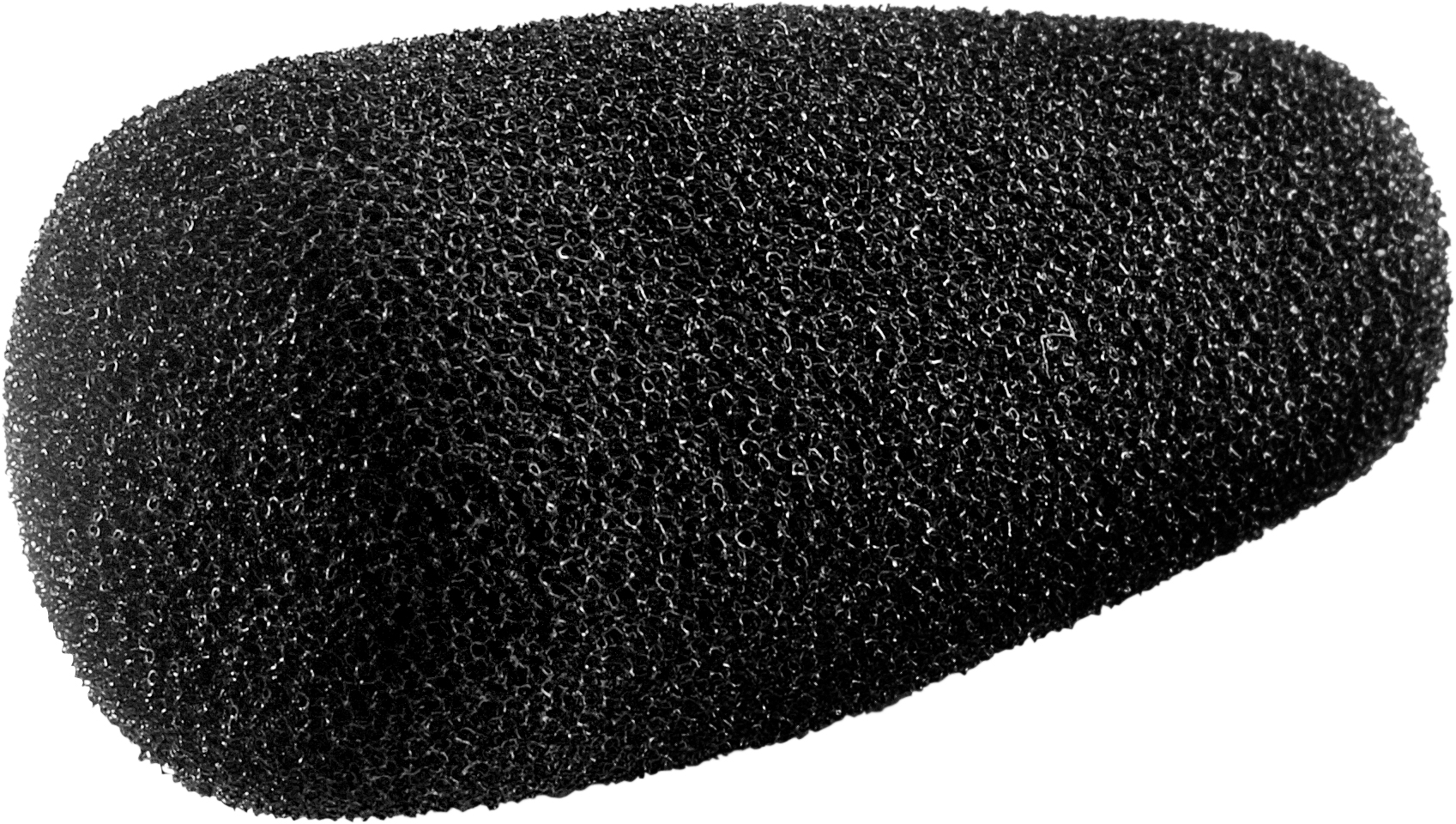

Airman Windscreen

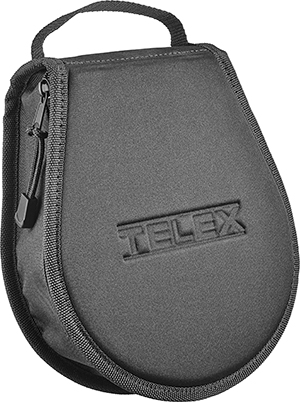

Airman8plus CarryCase

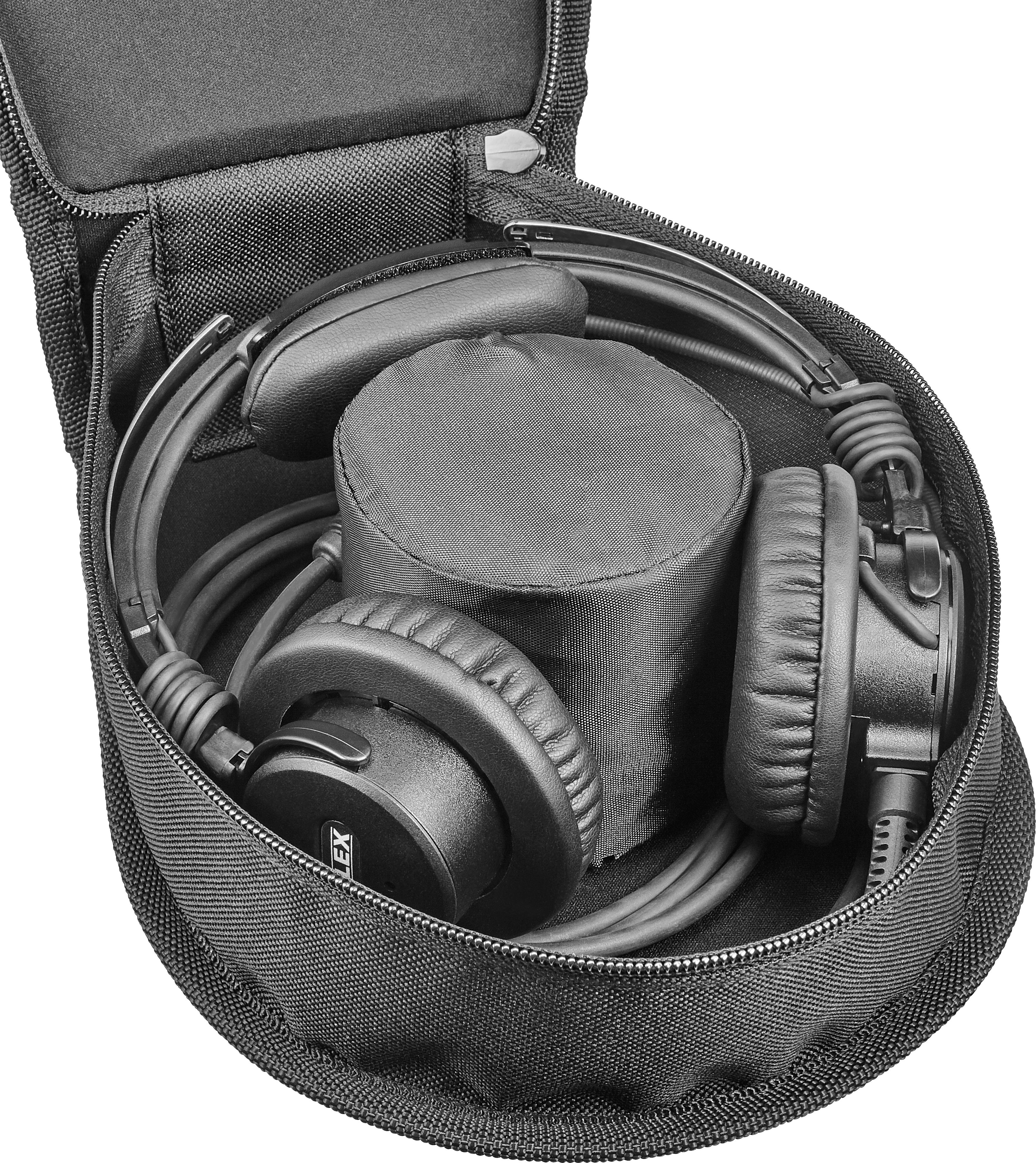

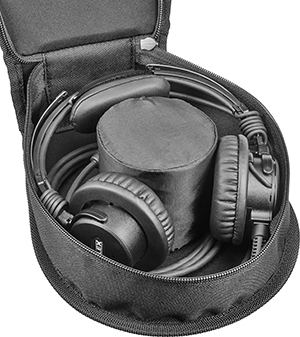

Airman8plus CarryCase Filled

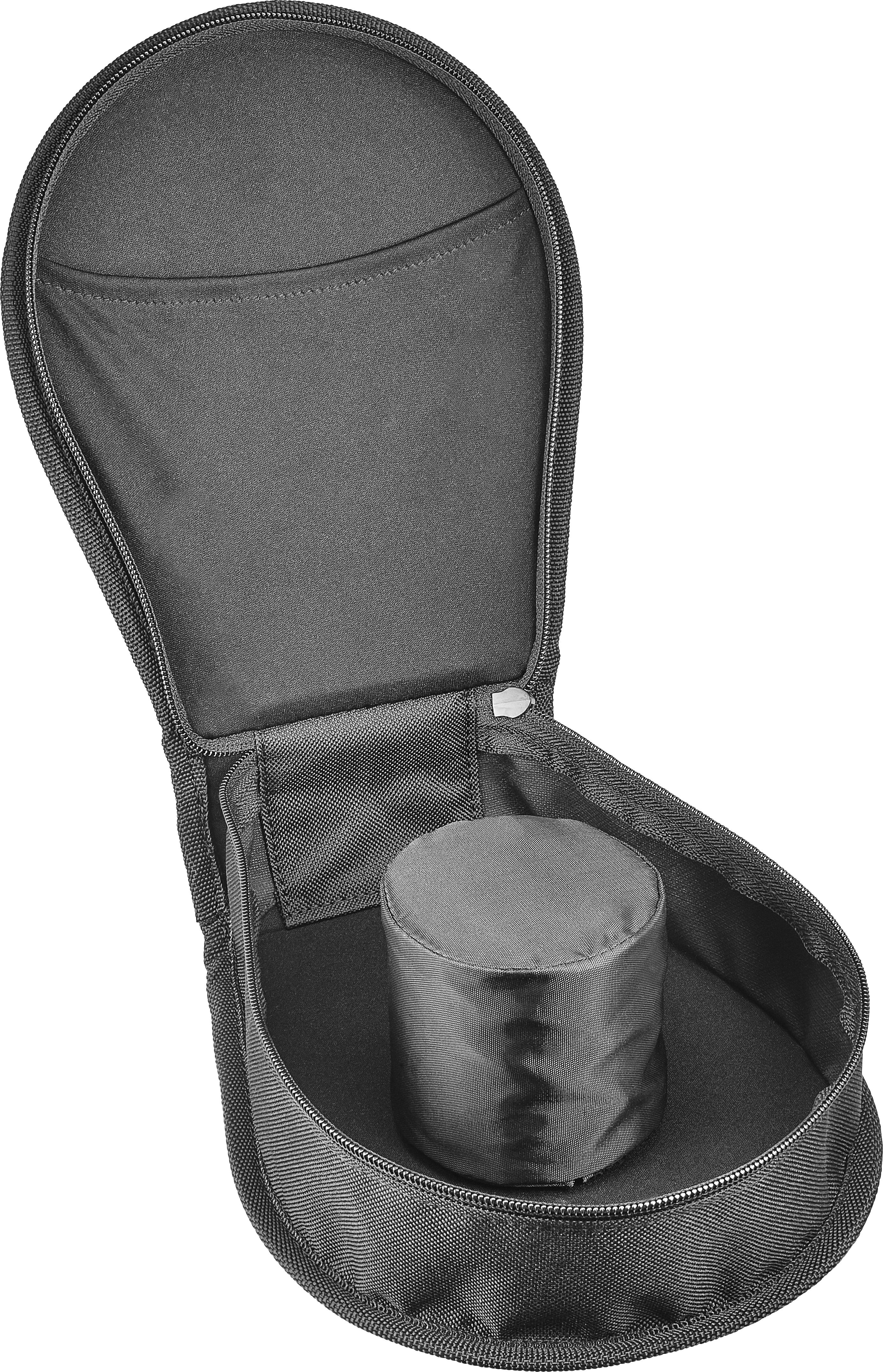

Airman8plus CarryCase Open

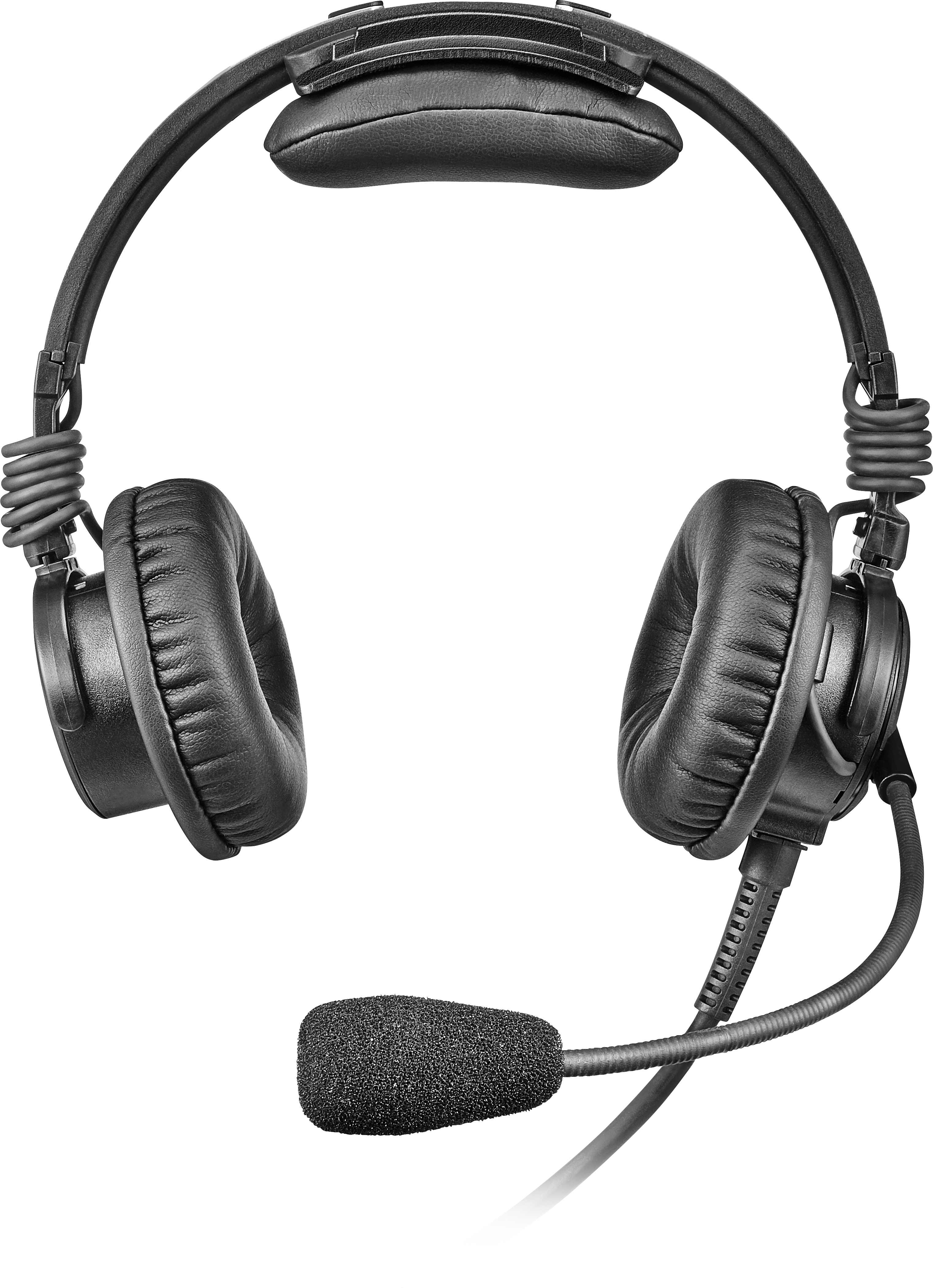

Airman8plus Front wLargePad

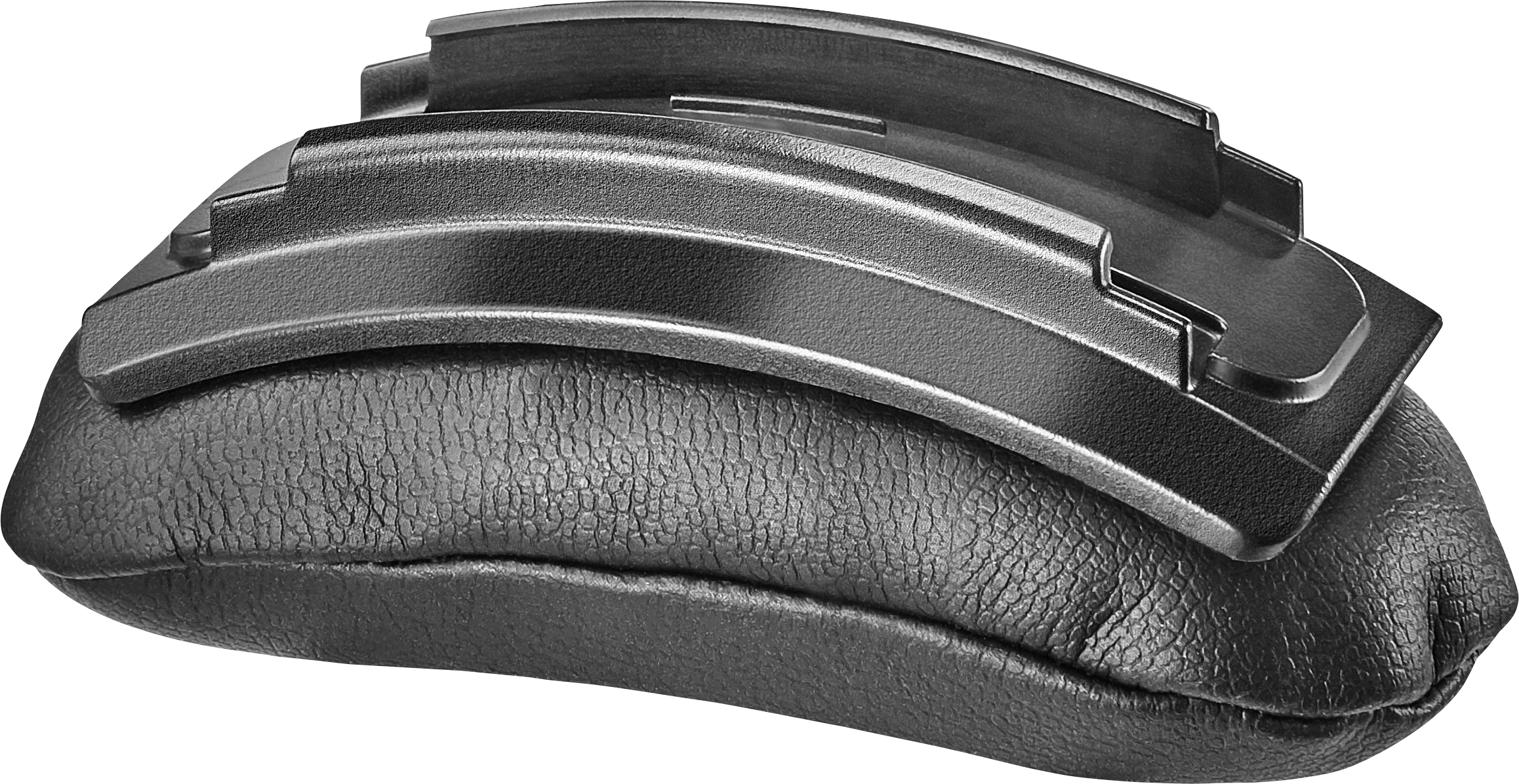

Airman8plus HeadbandPad Large

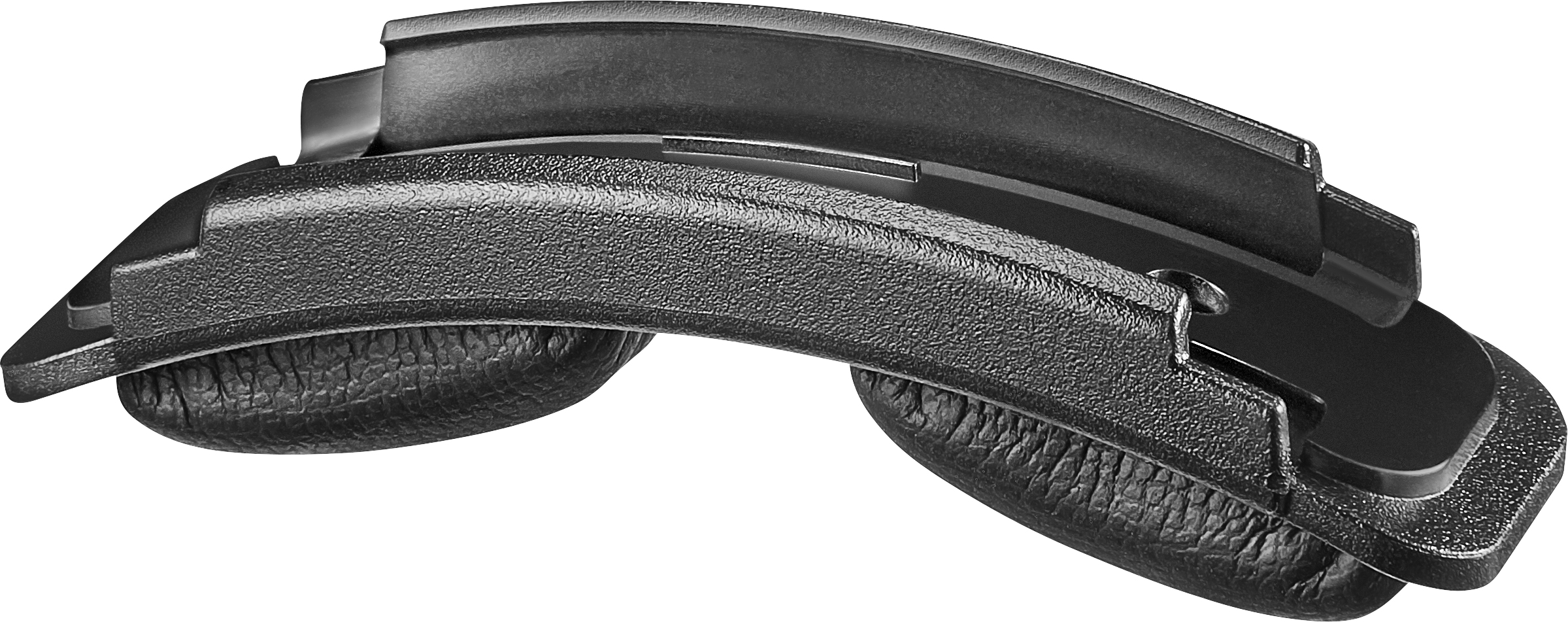

Airman8plus HeadbandPad Small

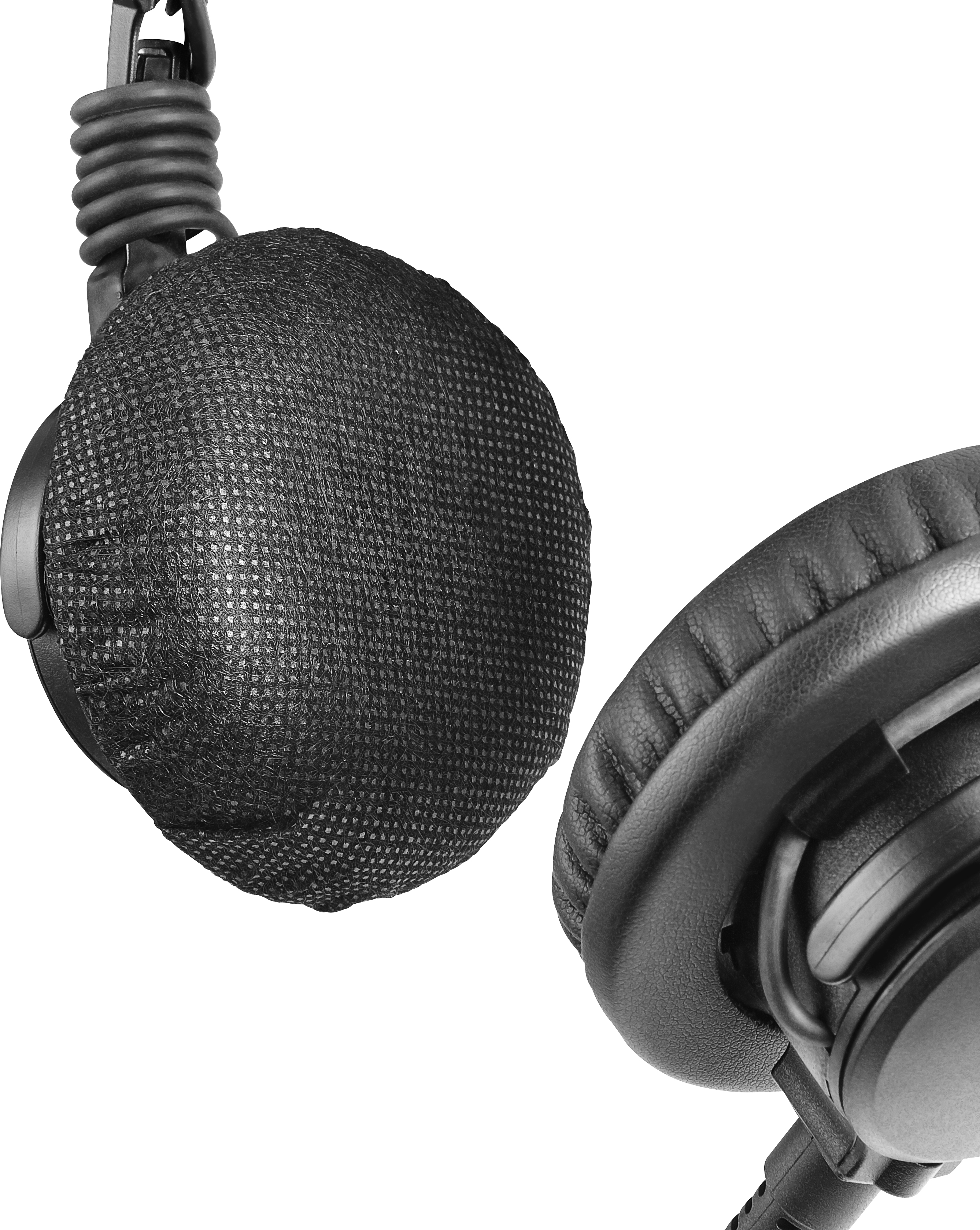

Airman8plus HygieneCover OnCushion

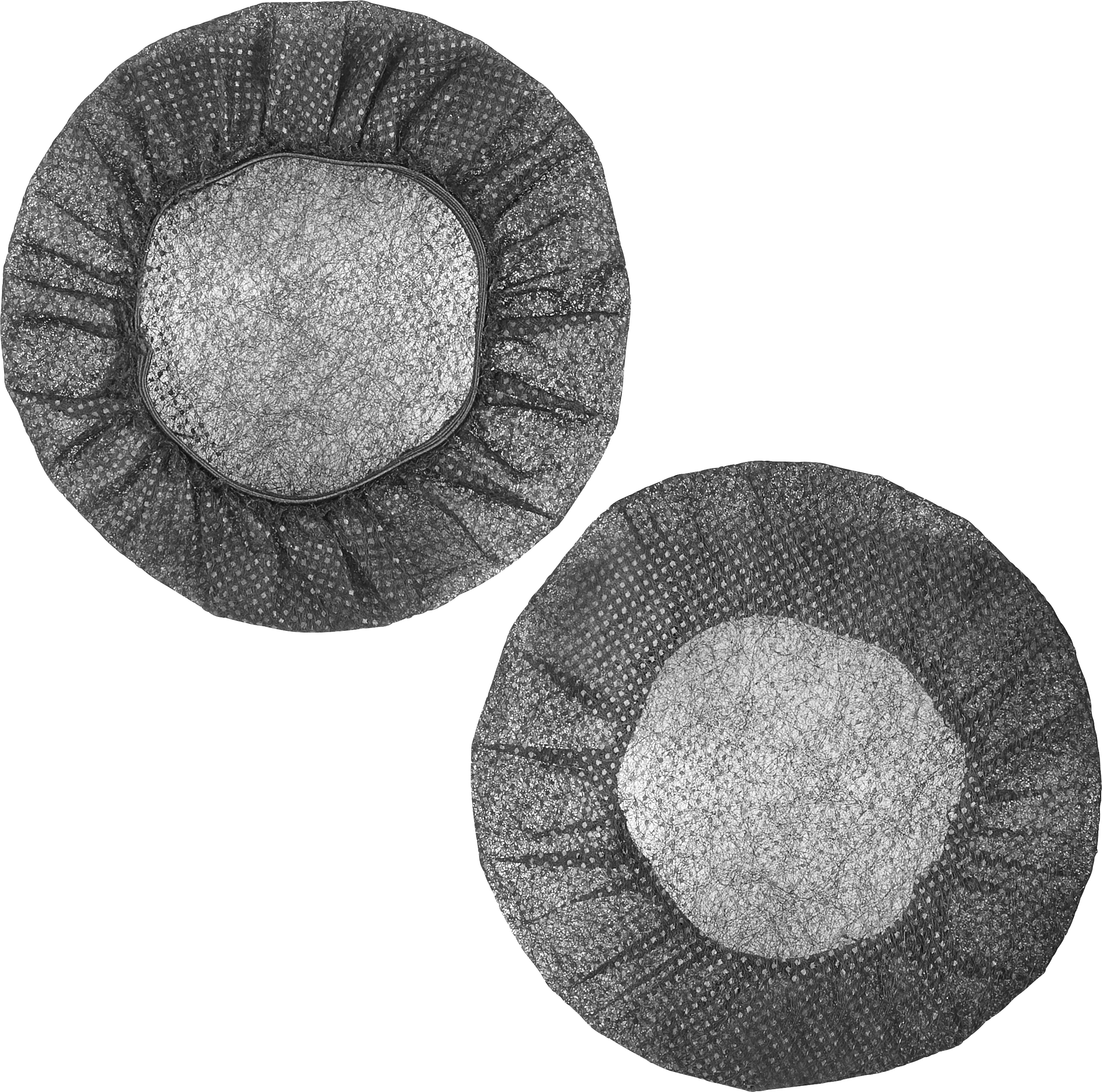

Airman8plus HygieneCovers

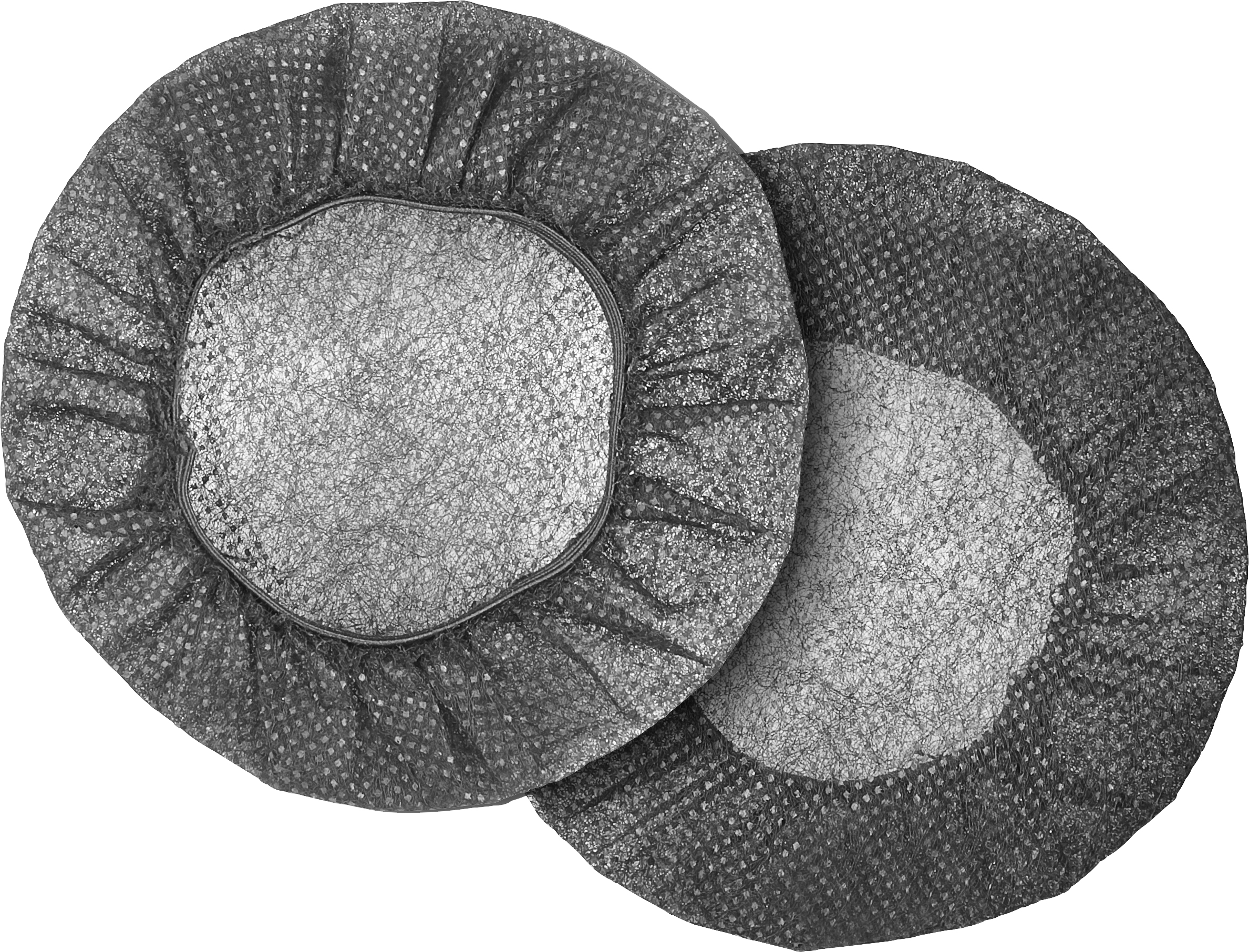

Airman8plus HygieneCovers Overlap

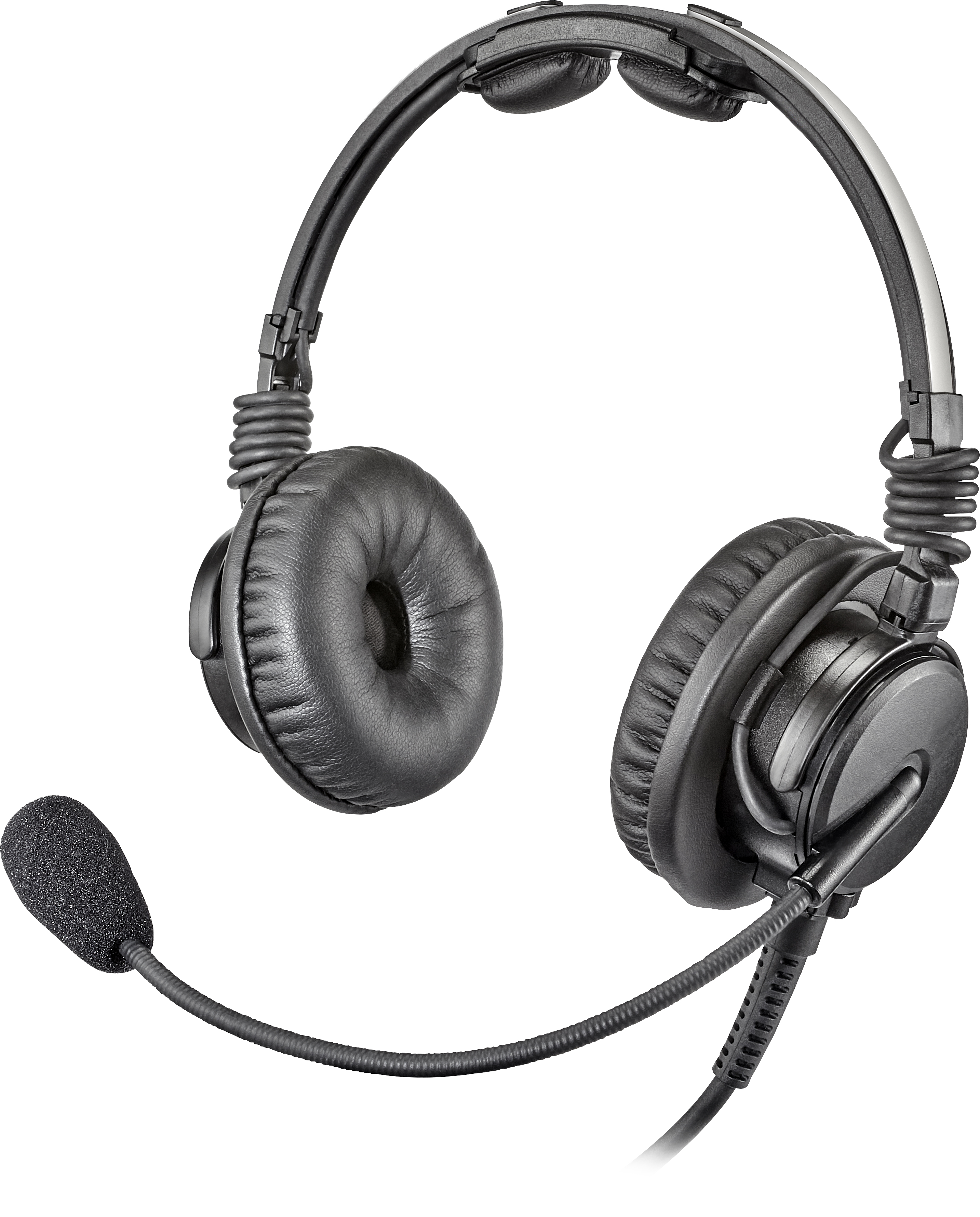

Airman8plus Left wSmallPad

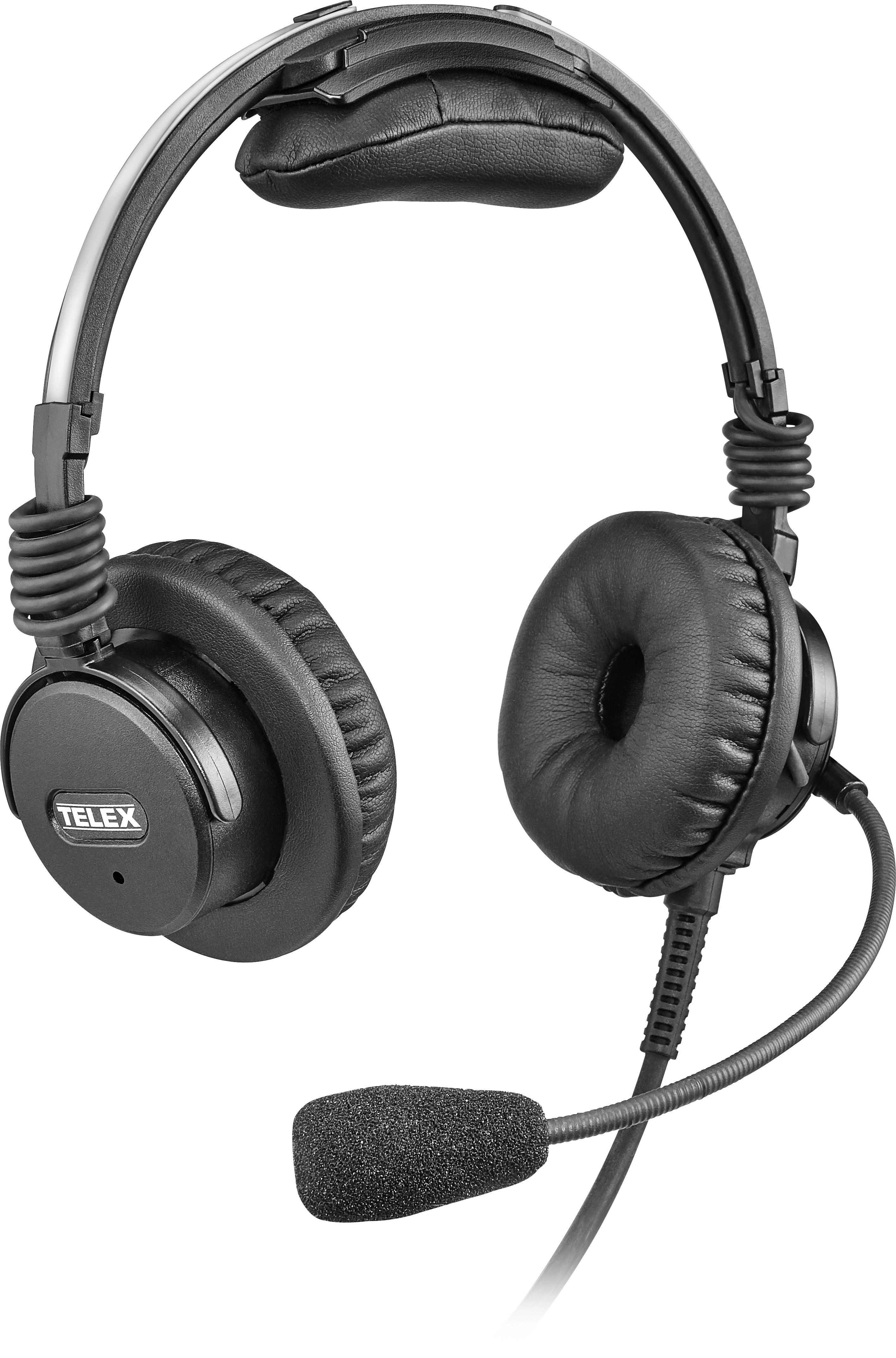

Airman8plus Right wLargePad

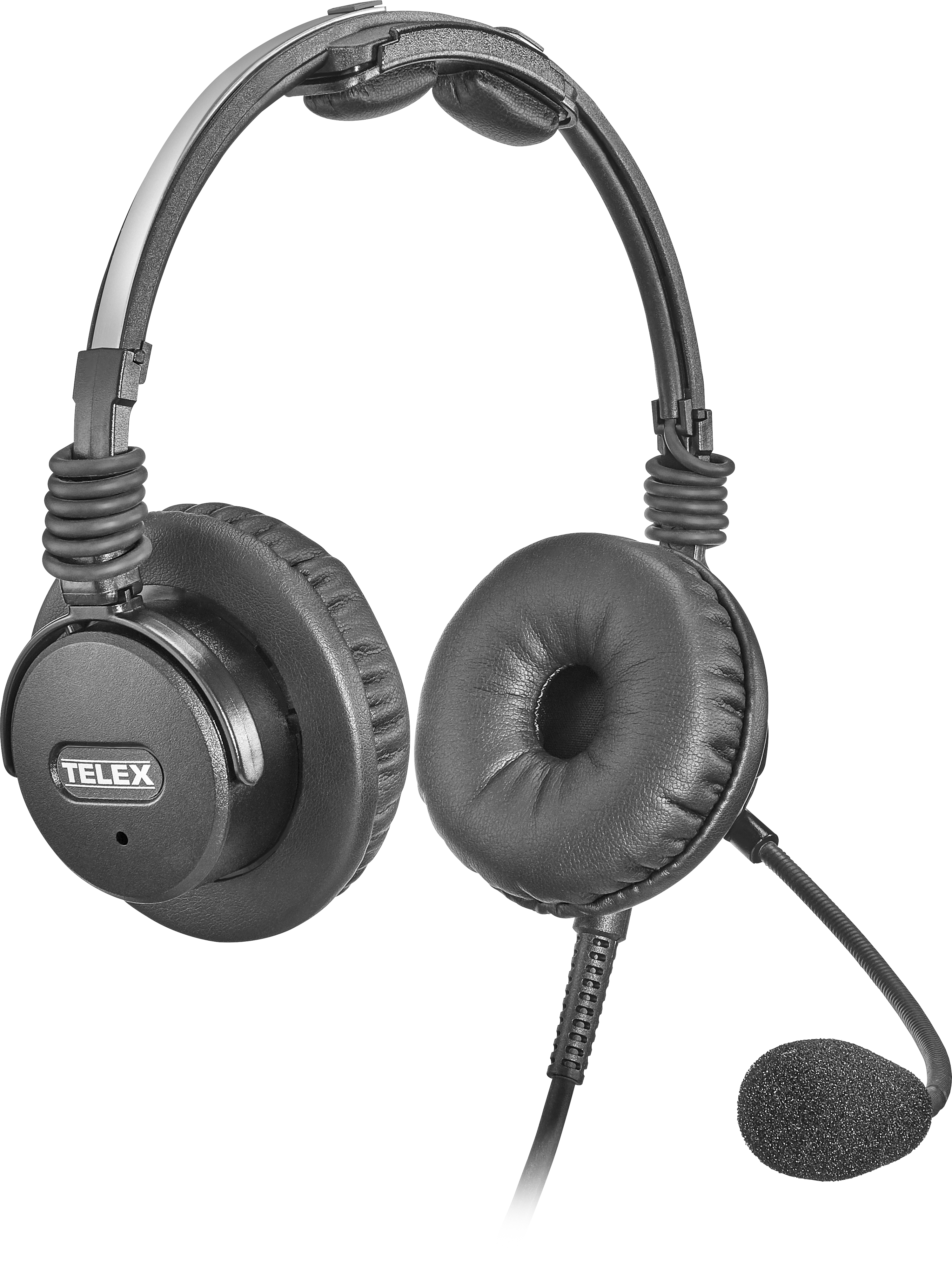

Airman8plus Right wSmallPad

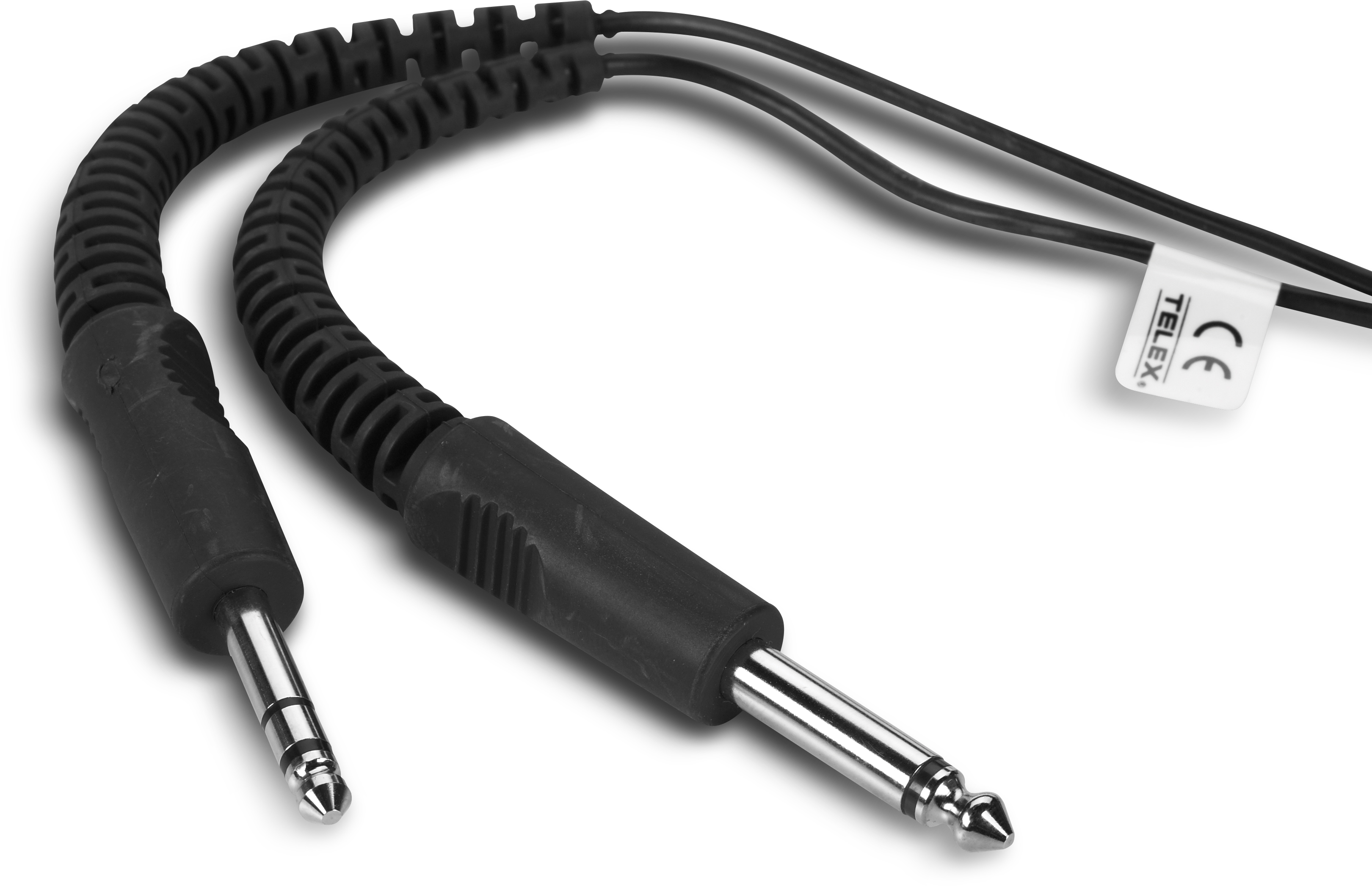

PJ Connector

Telex Airman8plus CloseUp

Telex Airman8plus Cockpit1

Telex Airman8plus Cockpit2

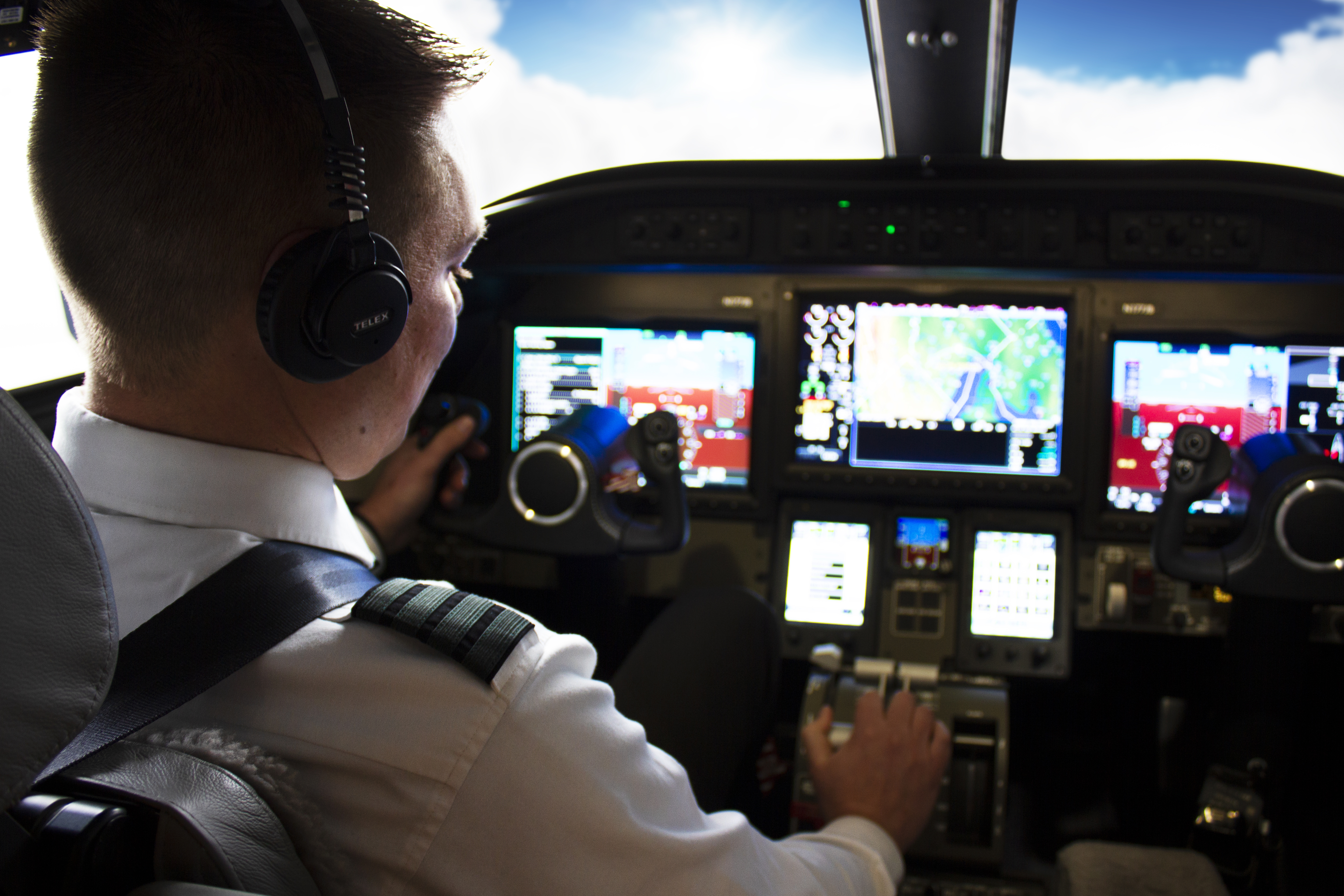

Telex Airman8plus Cockpit3

Telex Airman8plus Pilot1

Telex Airman8plus Pilot2

Telex Airman8plus Pilot3

Telex Airman8plus Pilot4

Telex Airman8plus Pilot5

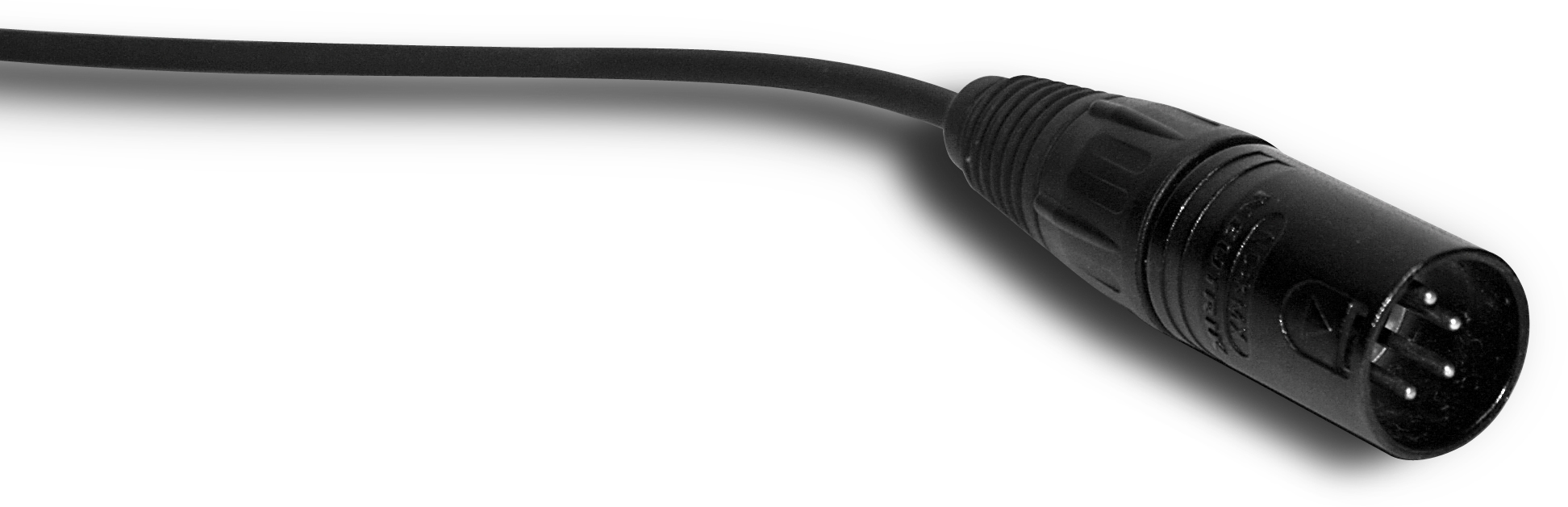

XLR5 Connector

Name Language Size Date
Airman8+ Operation Manual EN 1.85MB Jun 24, 2020
