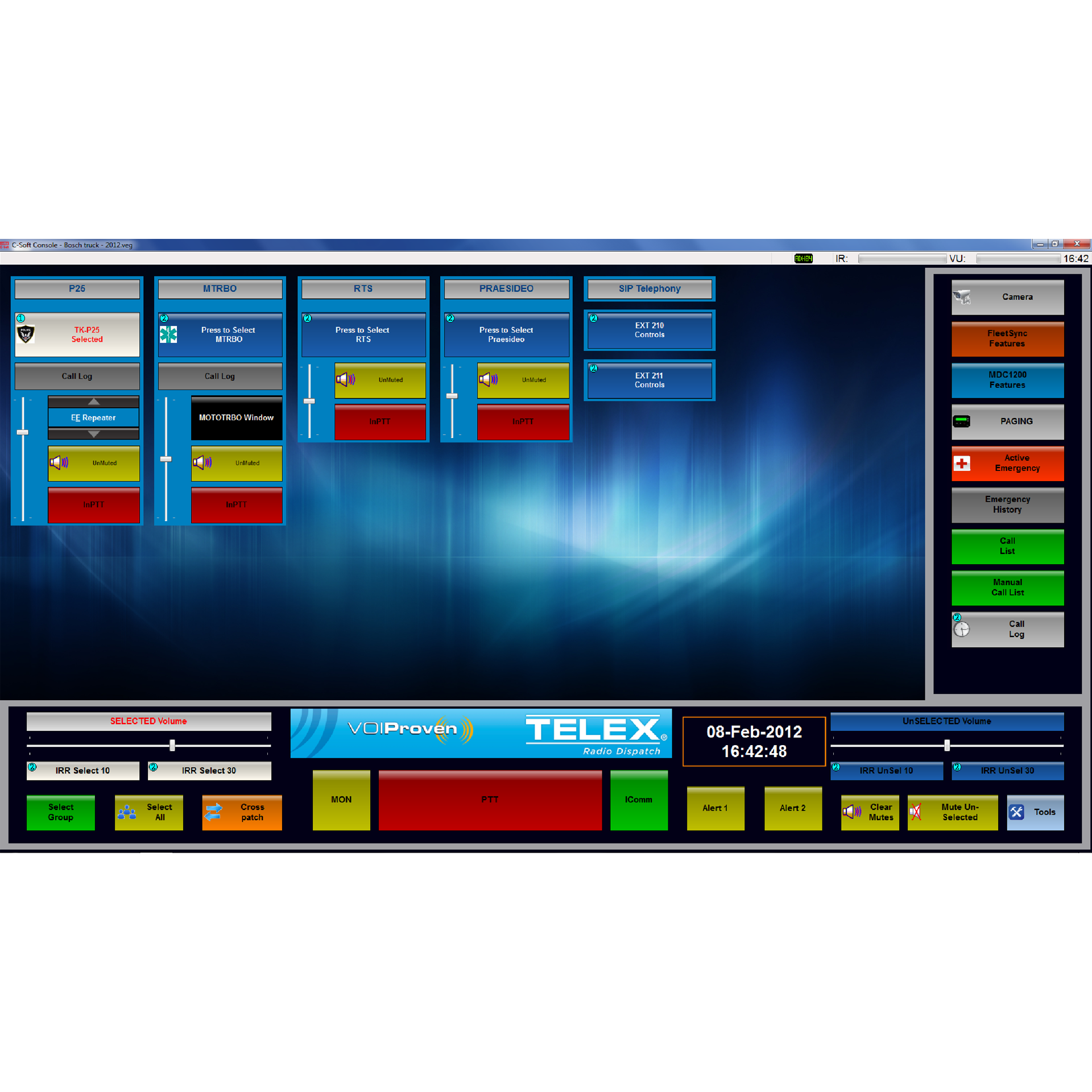

C-Soft dispatch software

DTMF Keys

Full 16-key keyboard

Paging

Multiple formats supported, Quickcall II in both the 100 and 1000 group formats, DTMF, Knox, 5/6 tone, and manual frequency

Alert Tones

Steady, Pulsed and High-Low Warble with frequency and duration programmable

Pre-Recorded Announcements

Audio files in the .wav format can be transmitted to selected lines via a single button press

Programmed Group & Mute

For both Group and Mute functions, lines can be selectively included within these programmed buttons allowing for instant access to particular lines of interest

Status Indicators

24-hour Clock, VU Meter, PTT Indication, and Instant Recall Recorder

Audio Interfacing

ADHB-4 and ADHB-4 Gen 2 allow for a variety of headsets, desktop microphones, NENA phone, footswitch, and up to six speakers

SIP Telephony

Crosspatch, DTMF hold, call history, phone directory, stun and proxy server. Provides audio adjustment with silence detection and jitter buffering, Able to specify IP address for SIP connections. 2 lines included, expandable to 6 or 12 lines.

Vocoder Types

High and low bandwidth vocoders assignable on a per-line basis

Over the Air Interfaces (via IP-224)

MOTOTRBO™, Motorola Smartnet/Smartzone, NEXEDGE, IDAS, Tetra, P25 DFSI, and DMR

Direct IP Interfaces (optional)

P25 DFSI, P25 CSSI, DMR - AIS, and NEXEDGE

Encryption

For P25 systems using DES and AES 256 bit standard, FIPS 140-2 compliant*

Mapping

Dependent on radio interface. Supported via .kml file.

Supported Commands

Channel/Talk Group change, Group/Private call, Encryption, GPS, Monitor, Call Alert, Radio Check/Enable/Disable, Remote Monitor, Text Messaging, Status Request, Scan and Talk-Around. Commands vary based on interface type see manual for more details.

Number of Lines

2 to 200 depending on configuration purchased

User Interface

User-controlled look and feel using included design and configuration software

Signaling Capabilities

MDC12000 encode and decode, NEXEDGE, FleetSync encode and decode, DTMF, serial and OTA FleetSync, 5/6 tone - supports emergency , group, individual, and status calls

Instant Recall Recorder

Tracks the last ten minutes of both select and unselect speaker audio

Information Windows

Per-Line Call History, Active Emergency, Emergency History, Manual Call List, Status Windows, and Call Queue

Per-Line Call Playback

One hour of recording up to 100 lines with one line included in base software

External Recorder Compatible

Many companies supported, contact sales or support for current list

Intercom

Yes, between consoles
