IP-3018 - IP console, 18 line by Telex

IP-3018

IP console, 18 line

  • User-friendlyCombines console and software into a single easy-to-configure device, with flexible layout options and an enhanced GUI (Graphical User Interface).
  • Simplifies managementMakes onsite and remote system administration, configuration, and software updates quick and easy.
  • Bridges systemsInterconnects with a variety of systems using APIs (Application Programming Interface).
  • Direct radio wireline IP interface upgradeableUpgradeable to Enterprise or Public Safety direct interfaces.
  • Backwards CompatibleWorks in parallel with existing Telex IP-based consoles.

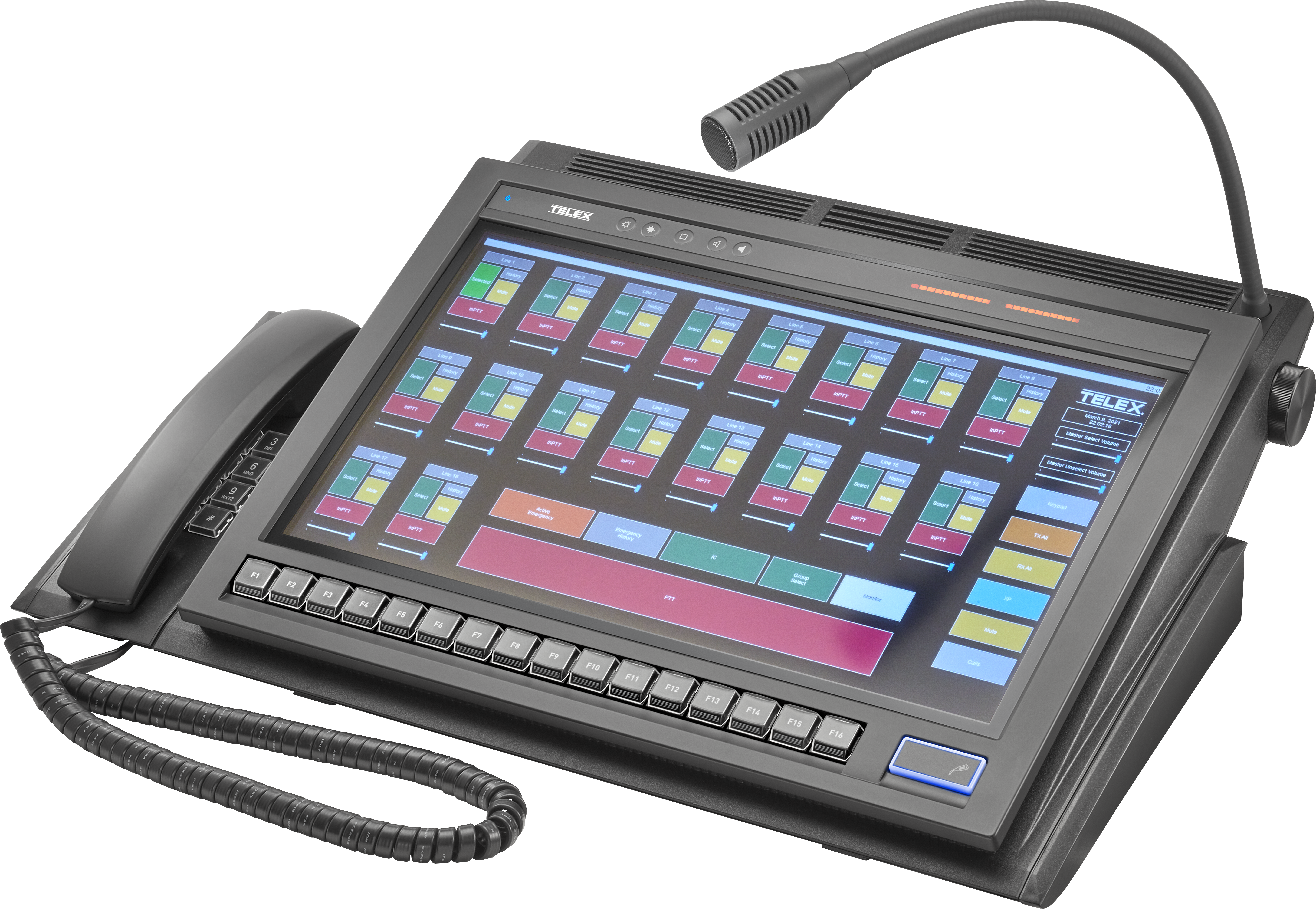

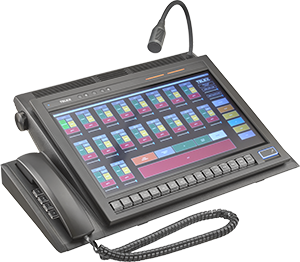

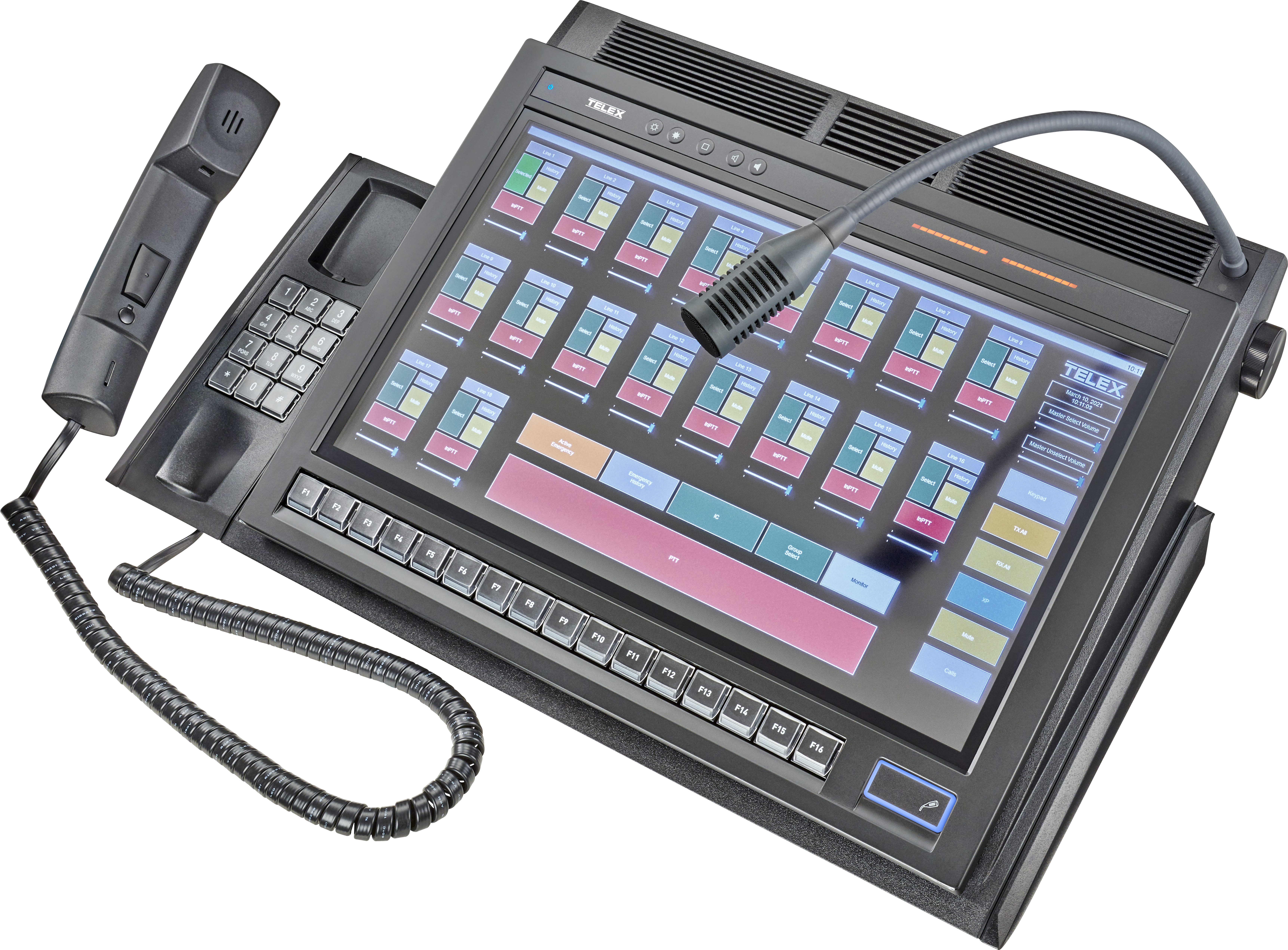

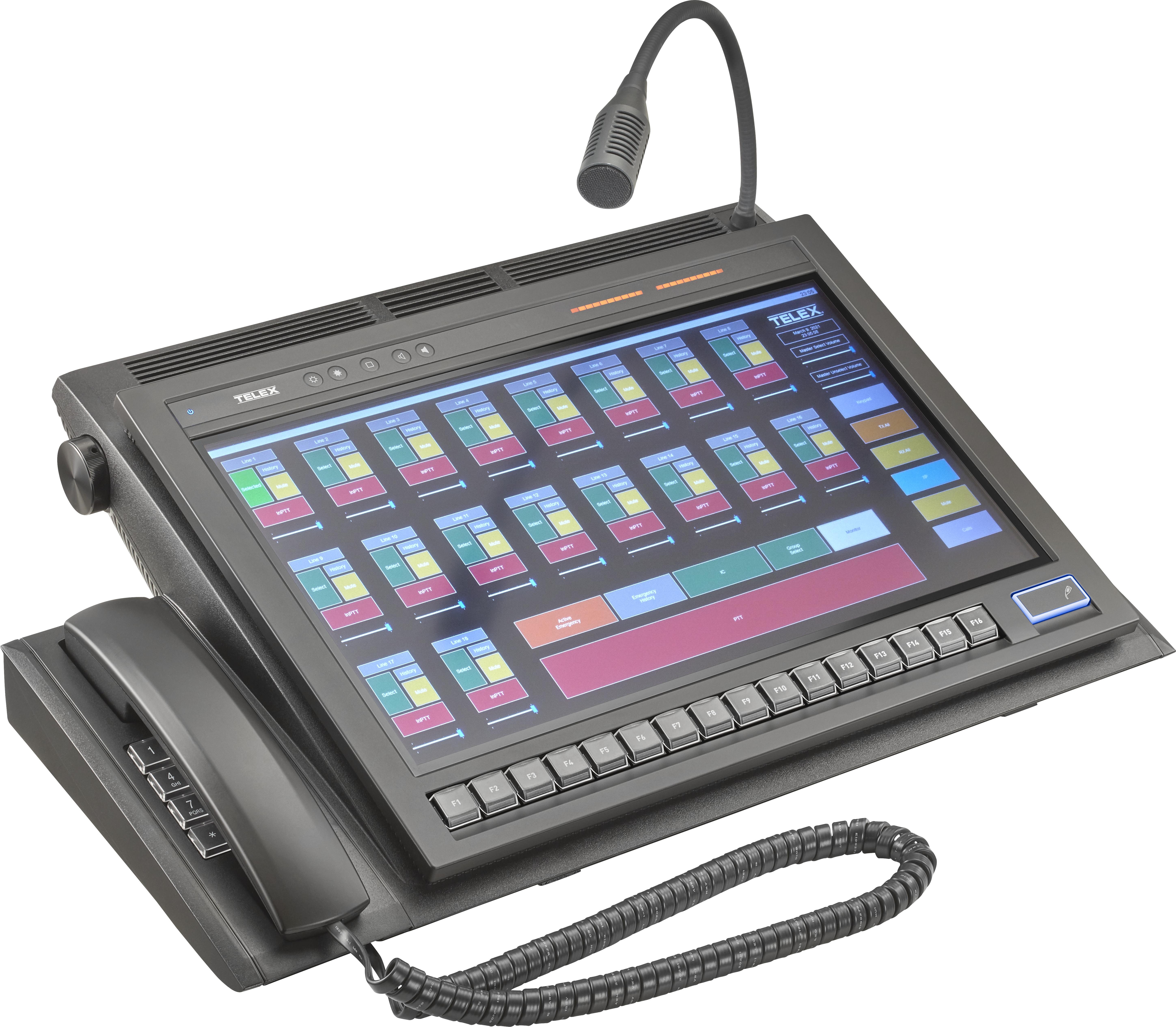

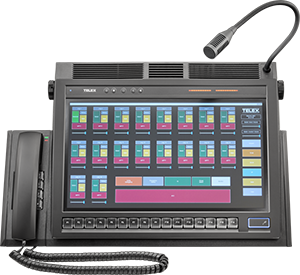

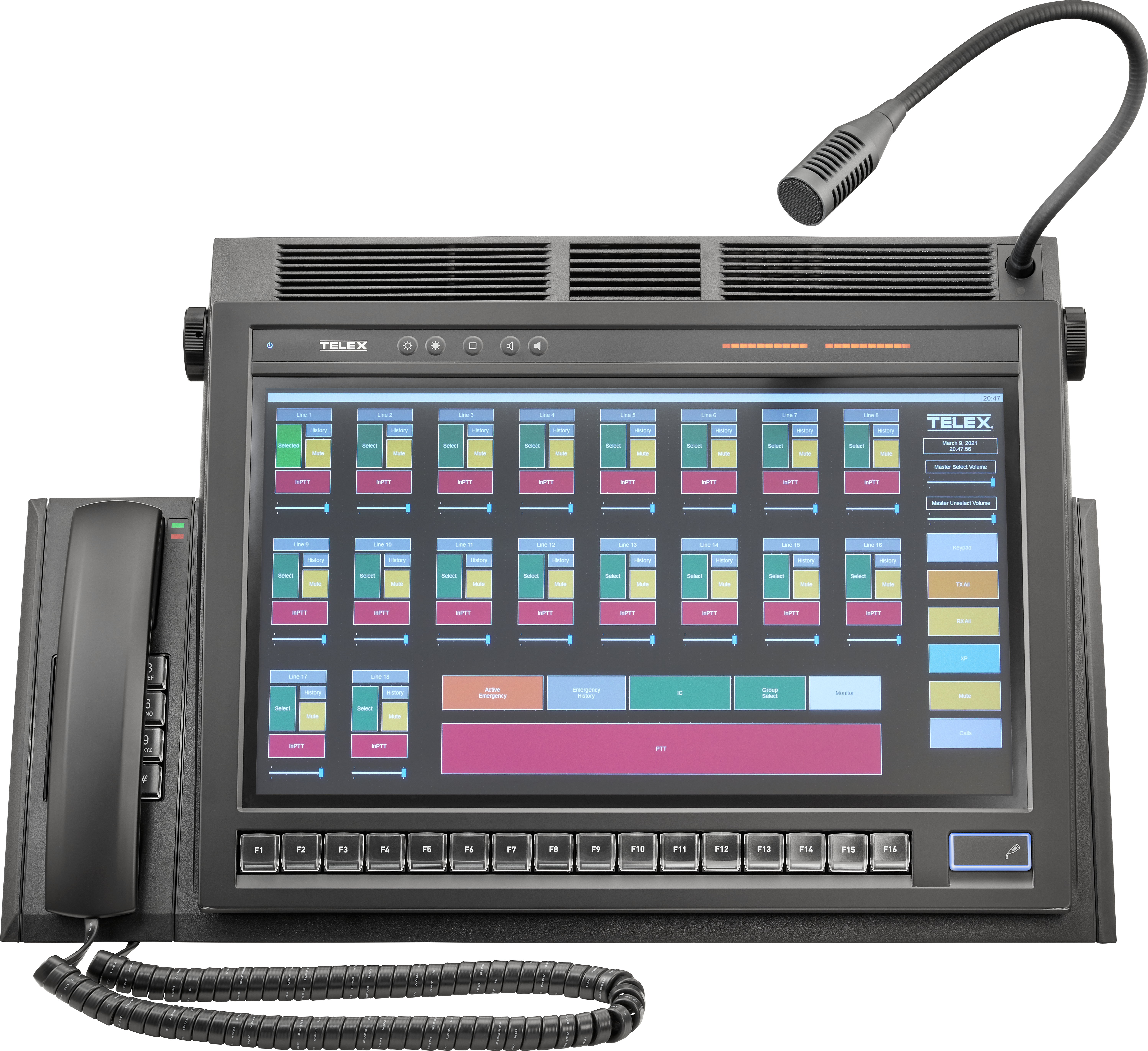

The IP-3018 18-line console is a part of the IP-3000 series of consoles that combine state-of-the-art hardware and software for the ultimate all-in-one UX (User Experience). The console features ergonomic comfort, fully customizable interfaces, backward-compatibility with existing Telex equipment (including the renowned IP-224 IP radio gateway), and easy to update software - all adding up to provide an optimal user experience while maximizing ROI (Return on Investment).

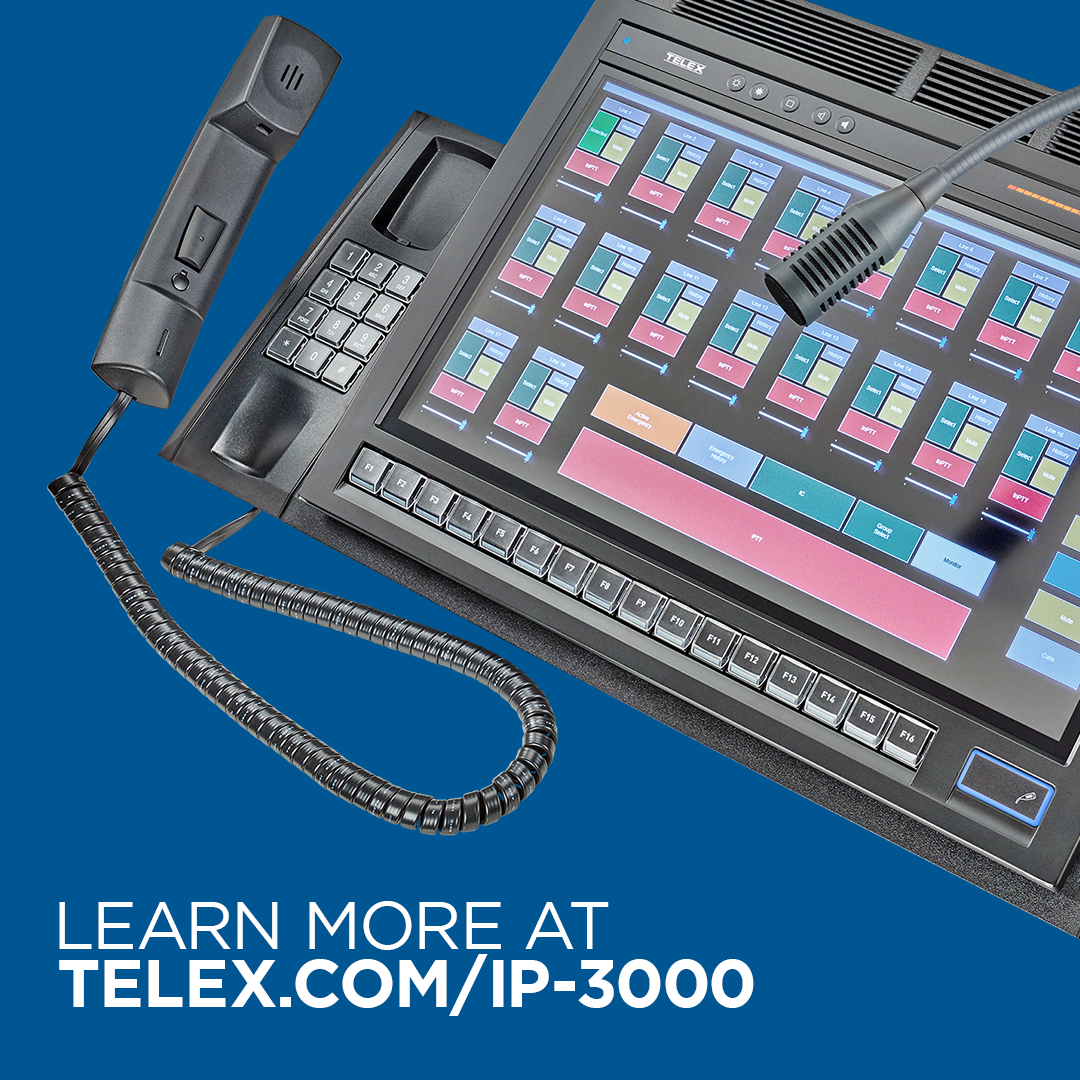

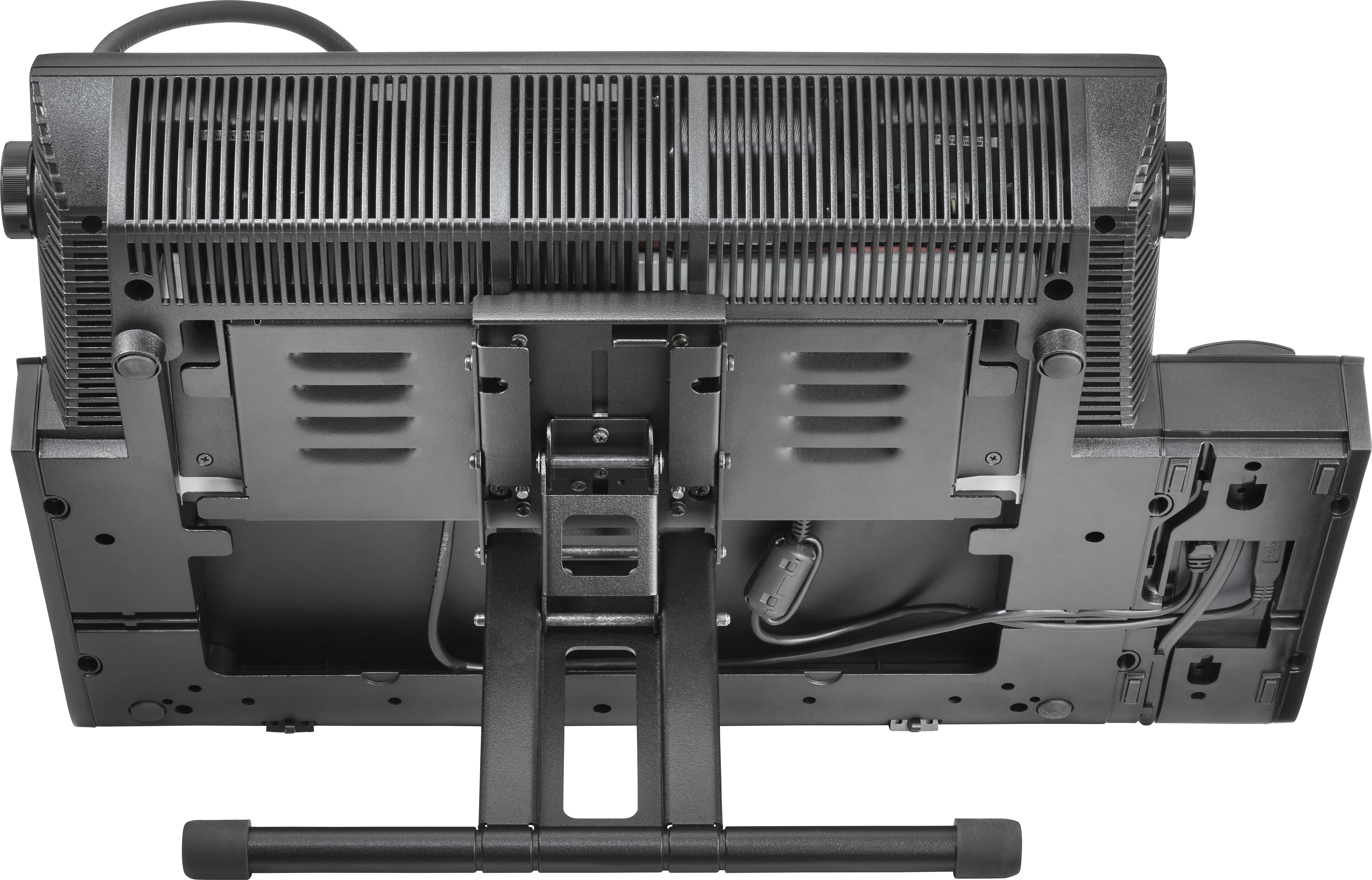

A superior hands-on user experience is ensured via a best-in-class feature lineup. Customers familiar with TSM (Telex System Manager) and C-Soft find configuring and using the console simple and efficient. With included features like a high-resolution TFT LCD touch screen display, high-quality speakers, USB ports, programmable keys and an output for an external monitor the console is quite capable. Optional features include an easy to install adjustable tilt stand, programmable keypad, and replaceable keys in a variety of colors.

Register for the webinar on August 18th

Specifications

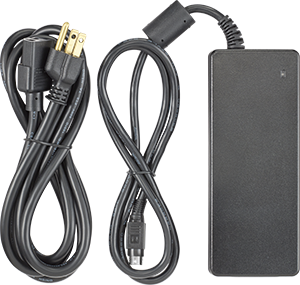

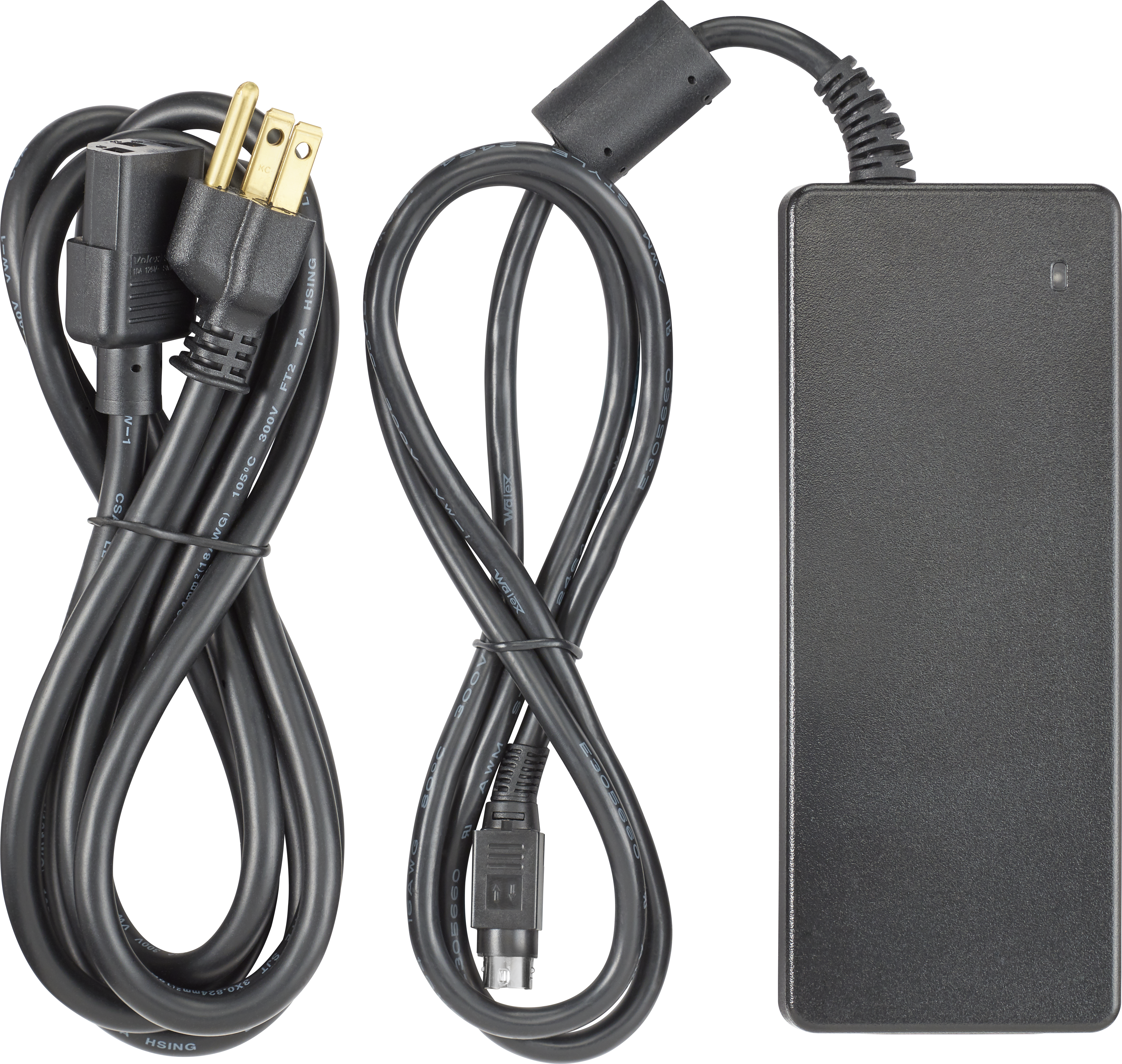

Power supply External 12V ±5% power supply
Output Max: 12VDC @8.55A (102W)
Input: 90 to 264VAC ~50/60Hz
Level VI energy efficiency rating
UL Certification
Active power 27.5 W (40.0 W maximum)
Display size 15.6 in
Display resolution 1920 x 1080
Touch screen Yes - 5-wire resistive
Processor Intel J1900 - 2.0 GHz
RAM 8 GB
Hard drive 256 GB SSD

USB audio codec 2
Speakers Selected and Unselected (2 x 2 W)
Volume control knobs 2
Volume control keys Yes

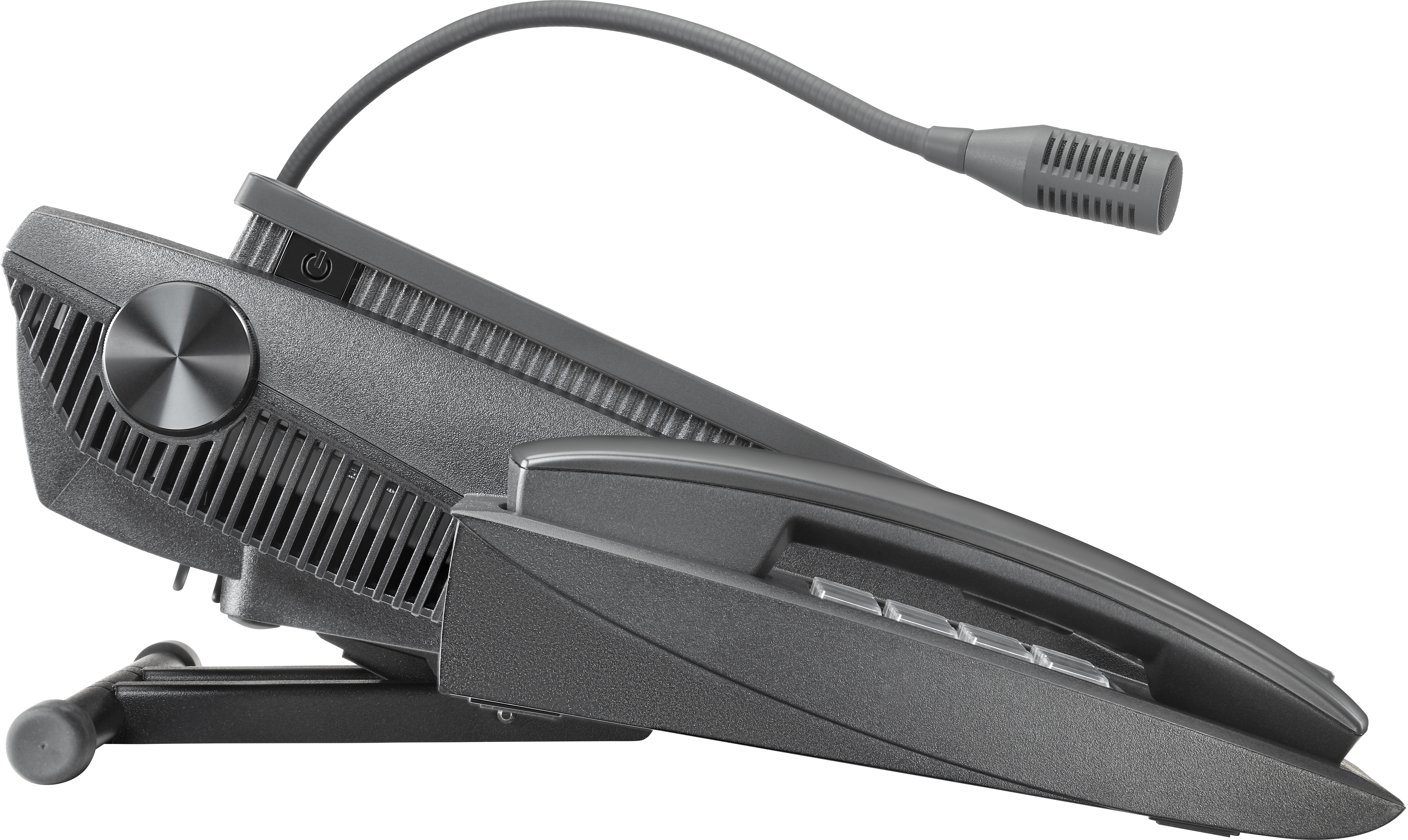

Goose-neck microphone Yes
Maximum input: 120 dB SPL
Illuminated PTT key Yes
Bar-graph VU meter displays Yes
Control keys 5
Programmable keys 16 (labelled F1 to F16)
Separate body and cover (allows for paper
key legends
Protection (sealing) grade IP20 - Indoor use, limited amounts of falling
dirt
External digital inputs 2
Footswitch interface Yes

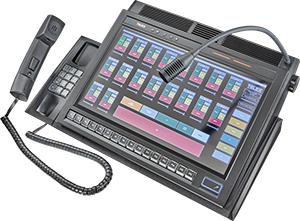

Handset with PTT Integrated
Dimensions W x D x H (mm) 510 x 342 x 112
Unit weight 6.5 kg
Operating temperature 5° C to 35°C
Storage temperature -10° C to 50° C
Humidity range 20% to 80% (non-condensing)
Certifications and approvals EN 55032:2012
EN-55024:2010
EN-61000-3-2:2014
EN-61000-3-3:2013
FCC Part 15
Canada's ICES-003 Issue 6
RoHS
REACH
N2580
